Come sostituire la batteria di uno SportWatch Armitron

Scritto Da: Jose Cabrera
  • Commenti: 10
Come sostituire la batteria di uno SportWatch Armitron

Difficoltà

Facile

Passi

5

Tempo Necessario

5 minuti

Introduzione

Sostituire la batteria dell'orologio Armitron richiederà lo smontaggio della maggior parte dell'orologio.

  1. o1wSGWJBy24JBNsQ
    o1wSGWJBy24JBNsQ
    InFcpuGXT1PmmWUE

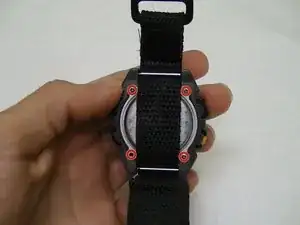

    • Rimuovi il cinturino posteriore.

    • Svita le quattro viti a croce Phillips a testa bombata da 1,7 mm.

  2. ZnvKmovMmMFrkUNP
    ZnvKmovMmMFrkUNP
    SrCSWluIhGGvUPfn

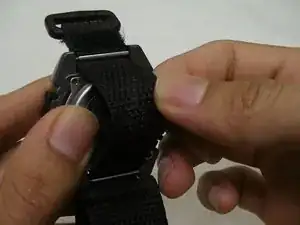

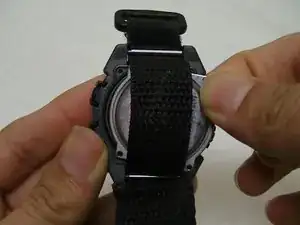

    • Tira indietro il cinturino mente tieni un dito premuto contro la copertura in metallo.

    • Tira delicatamente via la copertura in metallo dall'orologio.

  3. 2XiCNDnjqv4O22Zk
    2XiCNDnjqv4O22Zk
    otV1CXLT3hYVhNUh
    oXZUvK4MYJIidiV5

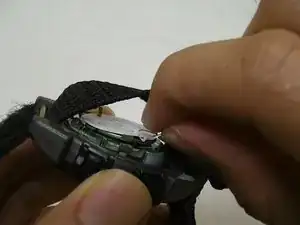

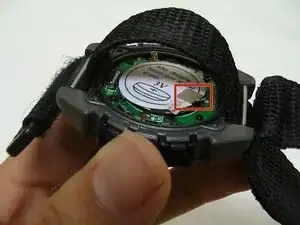

    • Schiaccia l'aletta in metallo.

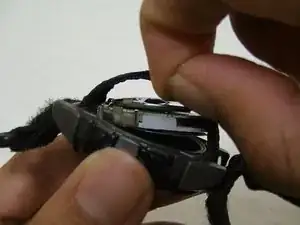

    • Solleva la scheda e rimuovila.

    How do you short out the battery. Confusing but nice watch. Can you help???? Plz!!!!

    genovese385 -

  4. JMKwQhLGO5MWCMEa

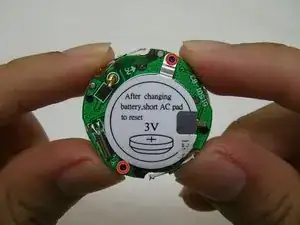

    • Svita le due viti a croce Phillips a testa bombata da 1,5 mm.

  5. PjPPFAwPL4qMyP5G

    • Rimuovi la batteria.

    • Prendi nota dell'orientamento in cui si trova la batteria per reinstallarla correttamente.

Conclusione

Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.

Autore

Jose Cabrera

Membro da: 23/02/15

452 Reputazione

9 commenti

what about the after battery replacement short circuit to reset it? that’s the hard part that totally is unclear!

holograf00 -

With a magnifying glass there is RESET written with a small diamond [THE ARROW] at one part of the back under the battery, On the side there is a slot that you put a piece of flat metal, small tipped screwdriver, into it. This will touch the contacts inside to reset the watch.

Greg Scott -

what about the post battery replacement short circuit reset?! that’s the hard part that’s completely unclear and confusing!

holograf00 -

my comments don’t seem to be working.

holograf00 -

I agree that these instructions are very deficient when describing how to reset the battery. I just spent 1/2 hour resetting an Amitron MD0699. One is supposed to bridge about a 2 mm gap between 2 vertical bands of metal. The space to approach this is very small. A normal paper clip tip is too narrow for this purpose. A large metallic paper clip tip might work, but you will have to prove that the metal is conductive. My micro screwdriver set didn’t work; I didn’t realize the metal was non conductive til I tested it with an electrometer. In the end, the electrometer tip was just the right size. I reassuring little chime rang when the reset occurs. All these little fine points would have made the original post useful.

pkenny -

I took the whole watch assembly out of the case and was able to short out the 2 tabs with a piece of stripped 16 ga stranded copper wire.

Michael Fairbank -

My particular Armitron had a VERY VAGUE reset diagram. A hole next to the battery had an imprinted arrow reading “RESET.” I broke off a large metal paper clip, stuck it in the hole and then shorted over to the new battery with the rest of the paper clip to reset.

Paul M   3-12-19

Max Mammon -

Lori H. -1/29/20 - I have a Armitron MD0699. My battery died. I can not find any instructions on HOW TO take the back off to replace the battery. There is NO WAY to remove the back! HELP!!!
