Compaq Presario CQ62-215dx Hard Drive Upgrade and Replacement

Scritto Da: Breana Thibodeaux
  • Commenti: 0
Compaq Presario CQ62-215dx Hard Drive Upgrade and Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

5 - 10 minuti

Introduzione

There are two reasons why you may need to replace your hard drive. Either your primary drive may be having a hardware failure or you want to upgrade to increase speed and capacity.


  1. cEoWNCZ2WnNSOswO

    • First you will need to turn the laptop upside down.

  2. KIVWiEWRQo1y2d5V

    • Remove the battery by pushing the switch to the left and removing the battery from its slot.

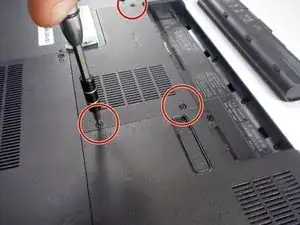

  3. tjDCrOM3ww6OPdsX

    • Unscrew the three 3mm screws on the compartment underneath the battery.

  4. 4RDpyoDtT3QfjG1W

    • Use a Phillips screwdriver to remove the two 3mm screws on the lowest compartment.

  5. cDyrKTsLOmHBnQMB

    • Use a Metal Spudger remove the panel. Underneath is where the hard drive is connected .

  6. HCqdWCdhsA2GkgpT

    • This is where you detach your old hard drive and replace with the new component.

Conclusione

To reassemble your device, follow these instructions in reverse order.
