Compaq iPAQ Pocket PC 3830 Battery Replacement

Scritto Da: Sedina Cavcic
  • Commenti: 2
Compaq iPAQ Pocket PC 3830 Battery Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

Nessuna stima

Introduzione

  1. 2adcwvjHZA6yadej
    2adcwvjHZA6yadej
    W2nPBILEOTXuPHct

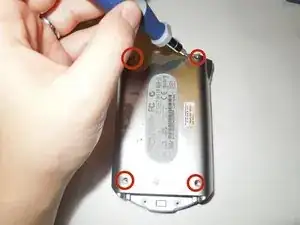

    • Remove the four 0.8 mm Phillips #00 screws from the back cover.

  2. pBIUghhxAqNbp26V

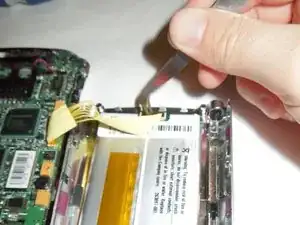

    • Detach the yellow wire from comb that is attached to the battery.

  3. F4e3AaVnQCQIGxVf

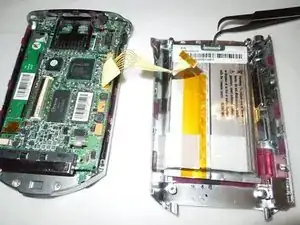

    • The yellow wire is removed from the comb attached to the battery.

  4. oYJWWutEKtTtFHjm

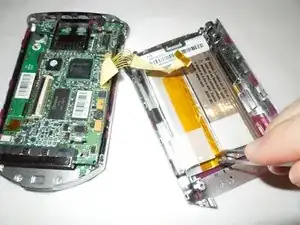

    • Remove the battery using tweezers from back cover.

  5. KOS1u1KVno3WlCAR

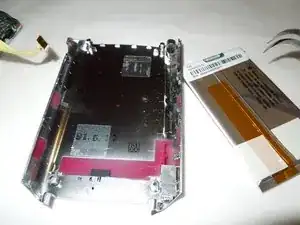

    • Detach the battery from back cover.

Conclusione

To reassemble your device, follow these instructions in reverse order.
