Corsair Crystal Series 460x ddr4 RAM Replacement

Scritto Da: RK Treglia
  • Commenti: 0
Corsair Crystal Series 460x ddr4 RAM Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

30 minuti

Introduzione

RAM, or Random-Access Memory, is very important to a PC’s performance. Replacing the RAM Sticks in a PC could provide a much smoother experience with it. This guide will show how to replace the RAM in a Corsair Crystal Series 460x PC case. This guide can also work with other cases, as the process is very simple and standardized across many PCs.

  1. KmcyfPQ4EfXUCCxx

    • Turn off and disconnect the Power Supply on the back of the computer to ensure no electricity is flowing through the computer while being repaired.

    • If the power supply is plugged in while the RAM Stick is being replaced, there is a serious risk of electrical shock. Make sure to unplug the power supply, and also flip the power switch to the “OFF” position as seen in the picture.

  2. Z6ijJAKXYKSD2Fbk

    • Put on an anti-static wristband and attach the alligator clip end to any grounded surface before beginning any work within the computer.

    • CAUTION: Anti-static wrist bands are a necessary layer of protection against electrical shock while working on a computer. While they are not mandatory, they are recommended as they severely reduce risk of electrical shock and damage to your computer.

  3. djFtrKPddqx2vvHw

    • Locate the four thumbscrews holding the glass panel.

  4. jXKVrq1gxCsyQJQh
    jXKVrq1gxCsyQJQh
    ifm5RVdYqBGkMeM1

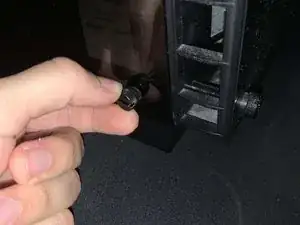

    • Unscrew the four thumbscrews by hand.

    • If the screws are more than hand-tight use a flat head to unscrew the thumbscrews.

  5. wjG5HY14j52vnInO

    • Remove the glass panel.

    • CAUTION: Handle with care to avoid damage.

  6. SSRjMMyBgqg1RU1Q
    SSRjMMyBgqg1RU1Q
    bhfLVAniMUvKOYlM

    • Locate the RAM sticks on the motherboard.

    • They are installed in slots 2 and 4, however they can also be installed in slots 1 and 3.

  7. 2fL6hMTsdvvLADwr
    2fL6hMTsdvvLADwr
    SLkdfrKAZIhXwhwg

    • Open the latches on the top and bottom of the RAM sticks

    • The latch is secured in the first image, and it is opened in the second image.

    • Remove the RAM sticks by pulling them straight out.

    • This may require some force, but they should remain undamaged if pulled straight.

  8. SyMYcMJufp3RPJfA
    SyMYcMJufp3RPJfA
    BSEXxQMDTiu25tfc

    • Before installing the new RAM sticks, note the location of the indent on the golden part of it.

    • This indent is there to guide the installation. It lines up with the RAM slots in the motherboard.

    • The RAM sticks are NOT symmetrical.

  9. TYfH5BKleLGxnwvS

    • Place your RAM into the same slots the damaged ones originated.

    • CAUTION: Ensure the indent is lined up to avoid damage to the RAM sticks and/or motherboard.

    • Apply an even, significant force on the RAM sticks straight into the motherboard.

    • Once a audible *CLICK *is heard, STOP applying force.

    • The audible *CLICK* heard is an indication that the latches locking the RAM sticks down in place.

Conclusione

Repeat steps 1-5, in reverse order.
