Craftsman Model 315.10721 Blade Replacement

Scritto Da: Riley Hilliker
  • Commenti: 2
Craftsman Model 315.10721 Blade Replacement

Difficoltà

Easy

Passi

2

Tempo Necessario

5 - 10 minuti

Introduzione

Replacing the blade on your Craftsman Model 315.10721 is fairly straightforward. However, replacing the blade can be dangerous, so please take caution when handling the blade and ensure that your saw is unplugged before beginning repair.

  1. A2hMpbMbCTNjAGnH

    • Be sure to unplug the saw before proceeding.

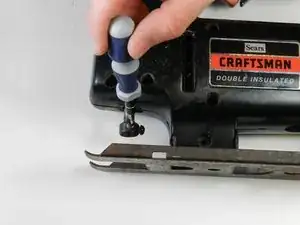

    • Using a flathead screwdriver, loosen the first 7/32" flathead screw on the saw blade clamp.

    • Rotate the saw blade clamp 90 degrees to the left and loosen the second 7/32" flathead screw

    • It is not necessary to completely remove the screws.

  2. OsOWOPKhUrNBOuEX

    • Carefully take the replacement blade and insert it into the saw blade clamp.

    • To secure the blade, retighten both 7/32" flathead screws on the saw blade clamp.
