Creality Ender 3 Pro Hotend Nozzle Replacement

Scritto Da: Vincent Lowe
  • Commenti: 0
Creality Ender 3 Pro Hotend Nozzle Replacement

Difficoltà

Moderate

Passi

10

Tempo Necessario

10 - 15 minuti

Introduzione

This guide will provide instructions on how to upgrade or replace the hot end nozzle on a Creality Ender 3 Pro (2022). A broken or clogged nozzle will often lead to printing errors, which wastes both time and filament.

  1. SRTCmkMfgsYwFIwS
    SRTCmkMfgsYwFIwS
    gjHtXSMaTtirtduA
    SCKNRo5Nsdhgb1mi

    • Press the knob to enter the Ender 3 Pro menu.

    • Turn the knob to navigate to the temperature menu.

    • Click on the nozzle setting found in the temperature menu.

    • Turn the knob to set the nozzle to 200 C.

  2. LFgpXOrfvKQlKiEQ

    • Wait for the nozzle to heat up.

    • The nozzle will be at 200 C and should be handled with care to avoid burning yourself.

  3. XXcAoIDskn3vfqBx
    XXcAoIDskn3vfqBx
    KCV2oxwsRmqdGTcX
    sN51CDHZFeL3URRE

    • Depress the extruder spring using the handle.

    • Pull the filament from the extruder, while keeping constant pressure on the extruder spring.

  4. XMDEECiihUSAoJeZ
    XMDEECiihUSAoJeZ
    inn3mIiBQGtYFAhj
    2CpoK6duwuLquwoa

    • Unscrew the two screws holding the fan shroud in place using the proper Allen key.

  5. AxDFl1jHqZnfnLBD
    AxDFl1jHqZnfnLBD
    JDaAwc2vySBKEYLK

    • The hot end is still at 200 C, so be careful not to burn yourself!

    • Remove the silicon sock covering the hot end and nozzle.

  6. EAicMb5FqPyBJu5L
    EAicMb5FqPyBJu5L
    x5cECDK5qI5L2RmX

    • Grab the hotend at the specified points using an adjustable wrench.

    • Be careful to avoid clamping the wires, ensuring the adjustable wrench only grabs the metal.

  7. lWEAVfcJUijjbSka
    lWEAVfcJUijjbSka
    xRBTCRvG5dMqWQ2W

    • Remove the nozzle with a 7mm socket wrench.

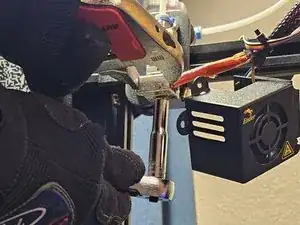

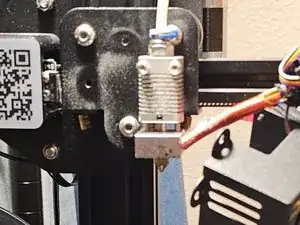

  8. jHhRPEZ5uqEbmYXo
    jHhRPEZ5uqEbmYXo
    YtQhxMAn2tGTs4Zx
    ipBIlAseB6CrMJYv

    • Place the new nozzle within the 7mm socket wrench.

    • Grab the hotend using the adjustable wrench as seen in step 7.

    • Screw in the new nozzle again using the 7mm socket wrench.

    • Ensure the nozzle is hand tight as to not damage the hotend.

  9. SthvJbWsIC1FTAHR
    SthvJbWsIC1FTAHR
    FUIDNdbrufLaGoZJ

    • Reattach the fan shroud by screwing in the two screws.

    • Place the silicon sock back on the hot end, avoiding contact with the metal.

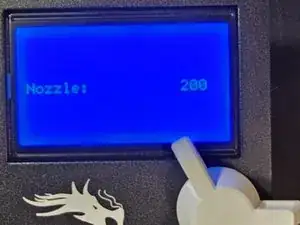

  10. A4uVPxOeqHwMjnWT
    A4uVPxOeqHwMjnWT
    ItorPPkVlAcsUSsG
    NDqX3jmMHhevUtCA

    • Navigate back to the temperature menu.

    • Set the nozzle temperature to 0 C, allowing it to cool down fully.
