This guide will show you how to replace the screen in a CyberpowerPC Fangbook HX6 with minimal difficulty.

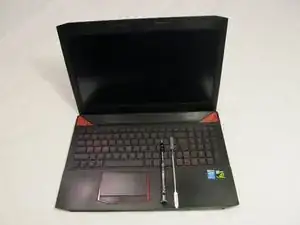

To replace the screen you will need a screwdriver (a size zero was used in this guide), and a tool that can be used to pry off the screen covering (a spudger was used in this guide).

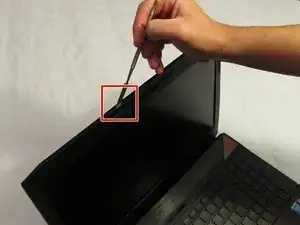

Insert the spudger gently into the seam that connects the front plate to the rest of the device.

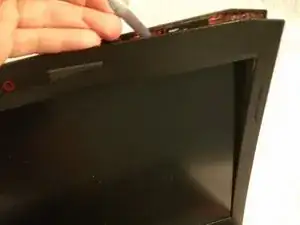

Move the tool carefully around the screen and apply a small amount of pressure. You are trying to undo several clasps holding the front plate on.
Do this on all sides of the face plate except for the bottom. The bottom will have a strip of adhesive you will need to carefully pull off to separate the face plate from the bottom of the screen.

Color coordinate the bullets to the pictures. We put colored circles/squares around the object and connected that to the bullet point it referred to.

Start each bullet with an action verb.

Don’t reference tools outside of the tools that you linked to the guide.

We suggest cropping the picture to ensure there is a full white background.

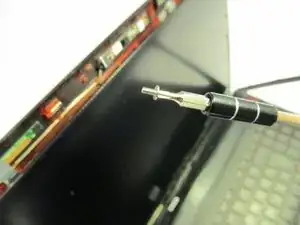

Remove the two 4mm silver screws on both sides of the top of the screen.

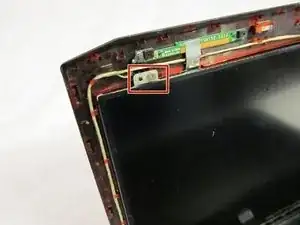

Once you have removed them, gently pull the screen off of the aligning dials (the small plastic pieces to the left of the screws).

You should identify the screw length to the nearest 0.1 mm.

Include screw size: 4 mm screws

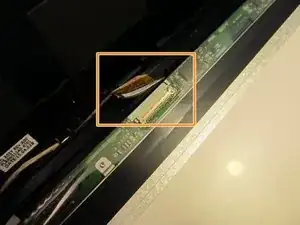

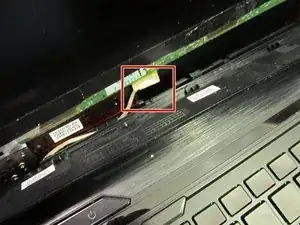

At this point the only thing keeping the screen attached to the laptop is this small wire and connector shown here.

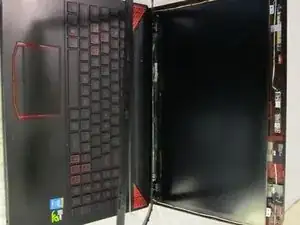

Gently pull the screen out and turn it over so that you can see where the connector is attached.
Carefully remove it. Once this is done you have successfully removed the screen from your laptop.
