Introduzione
The DJI Mini 3 was released in December 2022 as a slightly more affordable alternative to the Mini 3 Pro.
-
-
Ambarella H22-A0-RH H22 quad-core video SoC
-
Kingston D1216ECMDXGME-U 256 MB DDR3L SDRAM memory
-
HDSC HC32F460JEUA 32-bit ARM Cortex-M4 microcontroller
-
Qualcomm SMB2352–207 dual-cell Li-ion battery charger
-
Monolithic Power Systems MP6507GQ stepper motor driver w/ MOSFETs
-
Silergy SY6280AAC power distribution switch
-
OmniVision WAS7222Q 480 Mbps DPDT analog switch
-
-
-
Texas Instruments TLV75901P 1 A / adj. LDO regulator
-
OmniVision WL2836D12 300 mA / 1.2 V LDO regulator
-
OmniVision WL2836D18 300 mA / 1.8 V LDO regulator
-
OmniVision WL2848D18 300 mA / 1.8 V LDO regulator
-
OmniVision WL2836D25 300 mA / 2.5 V LDO regulator
-
Nexperia 74LVC2T45 dual supply translating transceiver
-
Nexperia 74LVC1G08 single 2-input AND gate
-
-
-
Possibly Leadcore S1 RF transceiver
-
Kangxi Communication Technologies KCT8247HE-1 2.4 GHz WLAN front-end module
-
Kangxi Communication Technologies KCT8576N 5 GHz WLAN front-end module
-
Likely Maxscend MXDx213 low noise amplifier
-
Likely Maxscend DPDT RF switch
-
Likely Maxscend MXD8622E SPDT RF switch
-
-
-
NXP Semiconductor MIMXRT1064DVL6B i.MX single core application processor
-
Kioxia TC58NVG1S3HBAI6 256 MB NAND flash memory
-
Kingston D1216ECMDXGME-U 256 MB DDR3L SDRAM memory
-
Monolithic Power Systems MP6543HGL 3-phase power stage
-
Silicon Content Technology SCT2260A 6 A synchronous step-down DC-DC converter
-
Silicon Content Technology SCT2230 3 A synchronous step-down DC-DC converter
-
Monolithic Power Systems DC-DC Converter
-
-
-
OmniVision WAS7222Q 480 Mbps DPDT analog switch
-
Texas Instruments TLV75901P 1 A / adj. LDO regulator
-
Possibly Linearin LTP3330 300 mA / 3.0 V LDO Regulator
-
OmniVision WL2836D33 300 mA / 3.3 V LDO regulator
-
Nexperia 74LVC2T45 dual supply translating transceiver
-
Yangjie Electronic Technology YJQ1216A P-Channel MOSFET
-
-
-
Synaptics SYN43456PXKUBG single-chip 5G WiFi 802.11ac w/ Bluetooth 5 & FM receiver
-
Likely Maxscend MXD8622E SPDT RF switch
-
-
-
Texas Instruments OPT3101 distance sensor analog front-end
-
SG Micro SGM2036-1.2 300 mA / 1.2 V LDO regulator
-
SG Micro SGM2036-1.8 300 mA / 1.8 V LDO regulator
-
SG Micro SGM2036-2.8 300 mA / 2.8 V LDO regulator
-
-
-
TDK-InvenSense ICM-40609-D 6-axis MEMS accelerometer & gyroscope
-
Goertek SPL06-001 pressure and temperature sensor
-
-
-
u-blox UBX-M10050-KB GNSS receiver
-
Maxscend MXDLN16TP GNSS low noise amplifier
-
OmniVision WL2848D18 300 mA / 1.8 V LDO regulator
-
OmniVision WL2836D33 300 mA / 3.3 V LDO regulator
-
-
-

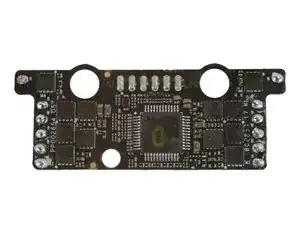

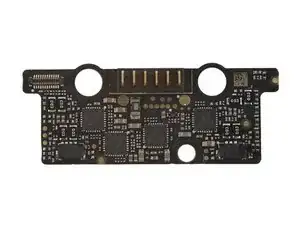

Spintrol SPC1168APE48 32-bit ARM Cortex-M4 microcontroller
-
Vergiga VS3622DB 30 V dual N-channel MOSFET
-
Nexperia 74LVC2T45 dual supply translating transceiver
-
-
-
Texas Instruments BQ9003 battery fuel gauge (likely)
-
Advanced Power Electronics Corp. AP3N1R8MT 30 V N-channel MOSFET
-
