Dell Alienware M14x Status-Light Board Replacement

Difficoltà

Easy

Passi

12

Tempo Necessario

10 - 15 minuti

Introduzione

In this guide, we will show you how to remove and replace the Status-Light Board.

  1. LVx3sJxNIrObEGxy

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Disconnect the battery-pack cable from the connector on the system board.

  2. VR5hiWIjZCsbAcKR

    • Loosen the two captive screws that secure the battery pack to the computer base.

  3. NGQk5bvNFiQHPIF2
    NGQk5bvNFiQHPIF2
    pNHNHwJ5SqwGJJGu

    • Using the pull-tab, lift the battery pack off the computer base.

  4. qTRQmJJO3NZ2bqQT

    • Place the NEW battery pack in the battery bay and tighten the two captive screws that secure the battery pack to the computer base.

  5. HYaEBDa1lstdru23

    • Connect the battery-pack cable to the connector on the system board.

  6. FePGCmmQYRIUod5E

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Turn the palm-rest assembly over.

  7. JTNAMnvyvCTEKJhP

    • Note the routing of status-light board cable and remove the cable from the routing guides.

  8. qaXKhCJPGZvbUbpE
    qaXKhCJPGZvbUbpE
    QLvZjGncYIUK231K

    • Remove the screw that secures the status-light board to the palm-rest assembly.

  9. IGTATJLWqQDh5KyA

    • Lift the status-light board along with its cable away from the palm-rest assembly.

  10. a1ovluRGHGmrM1Yp

    • Align the slot on the NEW status-light board with the alignment post on the palm rest assembly.

  11. yq3OkSprYggYc42N

    • Replace the screw that secures the status-light board to the palm-rest assembly.

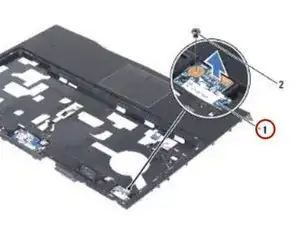

  12. kQ1uYGol5FsYHAK6

    • Route the status-light board cable through the routing guides on the palm- rest assembly.

Conclusione

To reassemble your device, follow these instructions in reverse order.
