Dell Inspiron 11-3162 Display Assembly Replacement

Scritto Da: Terrence15
  • Commenti: 0
Dell Inspiron 11-3162 Display Assembly Replacement

Difficoltà

Easy

Passi

13

Tempo Necessario

10 - 35 minuti

Introduzione

In this guide, we will show you how to remove and replace the Display Assembly.

  1. d4u2rMWeaD4HIaGi

  2. 2wTPUd2CaXYGVYQa

    • Slide and lift the display-cable bracket off the system board.

  3. Qg1xpLYnQCJNs1R1
    Qg1xpLYnQCJNs1R1
    bsnRC3pthnJCFaH4

    • Open the latch and disconnect the display cable from the system board.

  4. nRJuHo2huJR2Wdgv

    • Open the palm rest and keyboard assembly at an angle.

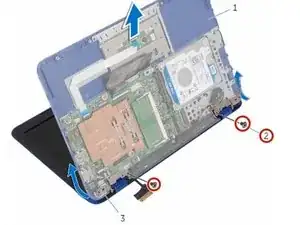

  5. mRvnSKHbgXS4YVPl

    • Remove the screws that secure the display assembly to the palm rest and keyboard assembly.

  6. 5R5kEHLGM2QcRmKw

    • Slide and lift the palm rest and keyboard assembly off the display assembly.

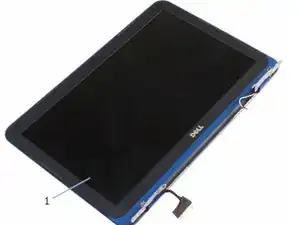

  7. uskrpBoFkPlMSDYt

    • Place the NEW display assembly on a flat and clean surface.

  8. WKCNoecRPXjLLGpI

    • Align the screw holes on the display hinges with the screw holes on the palm rest and keyboard assembly.

  9. abrFJbgVDXiplZdH

    • Replace the screws that secure the display assembly to the palm rest and keyboard assembly.

  10. sNMODPpCO4FJgyWQ

    • Slide the display cable into the connector on the system board and close the latch to secure the cable.

  11. eIpsY6P4phL4ocWb

    • Slide the display-cable bracket into the slot on the palm rest and keyboard assembly.

  12. BrRpsDOQquTWwwGC

    • Align the screw hole on the display-cable bracket with the screw hole on the system board.

  13. VBJY4B4ssLBwqCtp

    • Replace the screw that secures the display-cable bracket to the system board.

Conclusione

To reassemble your device, follow these instructions in reverse order.
