Dell Inspiron 14 Gaming 7466 Display Assembly Replacement

Scritto Da: Terrence15
  • Commenti: 0
Dell Inspiron 14 Gaming 7466 Display Assembly Replacement

Difficoltà

Easy

Passi

20

Tempo Necessario

8 - 30 minuti

Introduzione

In this guide, we will show you how to remove and replace the Display Assembly.

  1. ceeImmNhSrqGDkOD

  2. VTpSyAaEONqvEfvs

    • Peel off the camera cable from the computer base.

  3. VHvBSo3UJxn2cVMx

    • Remove the antenna cables from the routing guides on the computer base.

  4. Pibsoa5JEokJpMgE

    • Remove the screw (M2x3) that secures the display-cable bracket to the system board.

  5. hsEGHQGqGygTwAe4

    • Lift the display-cable bracket off the system board.

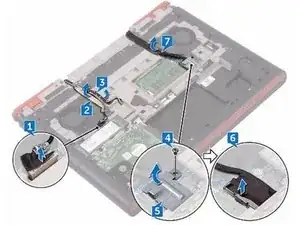

  6. fdIY4YjKZDjIdKYn

    • Using the pull-tab, disconnect the display cable from the system board.

  7. HPf3UZfROOGh4pEx

    • Peel off the display cable from the computer base.

  8. YpOCtPiw1WhMgvJK

    • Remove the two screws (M2x3) that secure the display assembly to the computer base.

  9. jhaRnEDLFIoSY2Nf

    • Remove the two screws (M2.5x5) that secure the display assembly to the computer base.

  10. CiDQACFjLMC6XbjF

    • Turn the computer over and open the display.

  11. 5GMyvHEiXYnULqwA

    • Remove the two screws (M2.5x5) that secure the display assembly to the computer base.

  12. BBtpgTqGWitHeMRe

    • Lift the display assembly off the computer base.

  13. KTYEqffcrKLfSKAZ

    • Align the screw holes on the NEW display assembly with the screw holes on the computer base.

  14. D2nOMsZVWrftCKYR

    • Replace the two screws (M2.5x5) that secure the display assembly to the computer base.

  15. I6GPSfUBFmGBAgE5

    • Close the display and turn the computer over.

    • Replace the two screws (M2.5x5) that secure the display assembly to the computer base.

  16. LlfjQoSnMhW6OSda

    • Replace the two screws (M2x3) that secure the display assembly to the computer base.

  17. U2S34o3Ebv1i5jOP

    • Adhere the display cable and the camera cable to the computer base.

  18. U2gyfB3gYVI6Fuab

    • Connect the display cable and camera cable to the system board.

  19. yxGFyoe3iCig45TB

    • Align the screw hole on the display-cable bracket with the screw hole on the system board.

  20. uu2PDWG3lVxBgTdR

    • Replace the screw (M2x3) that secures the display cable bracket to the system board.
