Dell Inspiron 14R-5421 CD Drive Replacement

Scritto Da: Jared paiva
  • Commenti: 0
Dell Inspiron 14R-5421 CD Drive Replacement

Difficoltà

Very easy

Passi

4

Tempo Necessario

5 minuti

Introduzione

this guide will show you how to replace the cd drive

  1. wVs1AWDy2NXWUesI

    • Push the two sliders away from the battery towards the outer edges.

  2. PY4eJMrVXdYwbjHn
    PY4eJMrVXdYwbjHn
    IEbilHBB1xCGr5LX

    • Remove the battery when it pops up.

  3. nc2rg4FMSqZgIZSo

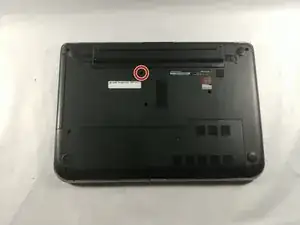

    • Remove the single screw that secures the cd drive to the laptop noted by the red circle

  4. TcvT6XnF5dY4nScp
    TcvT6XnF5dY4nScp
    fGIdA6KIXJR4PONL

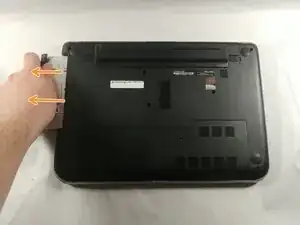

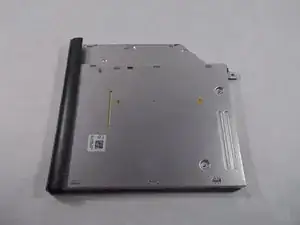

    • Now just pull the cd drive until it disconnects from the computer

Conclusione

To reassemble your device, follow these instructions in reverse order.
