Dell Inspiron 15 5578 2-in-1 Hard Drive Replacement

Scritto Da: Terrence15
  • Commenti: 0
Dell Inspiron 15 5578 2-in-1 Hard Drive Replacement

Difficoltà

Moderate

Passi

16

Tempo Necessario

3 - 9 minuti

Introduzione

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. oAAmdmsOPaseC31V
    oAAmdmsOPaseC31V
    ShUEcqQqBqtdIBic

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • Using the pull tab, disconnect the hard-drive cable from the system board.

  2. MJlQmkgoDLySt34O

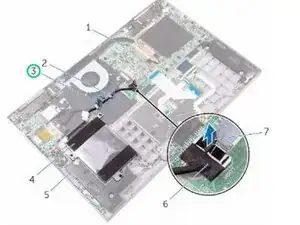

    • Peel off the tape that secures the hard-drive cable to the palm rest and keyboard assembly.

  3. xkTNWCNNGA26KFFw

    • Note the hard-drive cable routing and remove the cable from the routing guides.

  4. uReB1xhWIYAHHpLk

    • Remove the screws that secure the hard-drive assembly to the palm rest and keyboard assembly.

  5. lcGBGRbxWGikelqZ

    • Lift the hard-drive assembly along with its cable off the palm rest and keyboard assembly.

  6. 3DTetZCGHsIiYSwv
    3DTetZCGHsIiYSwv
    wVZ3xAGijIHxo1GM

    • Disconnect the interposer from the hard-drive assembly.

  7. taeLvnqqUV2nUHMX

    • Remove the screws that secure the hard-drive bracket to the hard drive.

  8. MPhavTNTUMf5ZgOo
    MPhavTNTUMf5ZgOo
    CsNjlqD3sNwIEw4C

    • Lift the hard drive off the hard-drive bracket.

  9. LrttrkJuR3FY5lvx

    • Align the screw holes on the hard-drive bracket with the screw holes on the NEW hard drive.

  10. nGB1lKDmfG2ndZKa

    • Replace the screws that secure the hard-drive bracket to the hard drive.

  11. AhVuAvPxeINtIbdu

    • Connect the interposer to the hard-drive assembly.

  12. b2uVWAxpJ4CAZbay

    • Align the screw holes on the hard-drive assembly with the screw holes on the palm rest and keyboard assembly.

  13. USgqDhgUaYNUWtfN

    • Replace the screws that secure the hard-drive assembly to the palm rest and keyboard assembly.

  14. kbUPWo36AWJcYKME

    • Route the hard-drive cable through the routing guides on the palm rest and keyboard assembly.

  15. CmnJQLZZwhctBRgi

    • Connect the hard-drive cable to the system board.

  16. kD6TVPSPgVvtglbV

    • Adhere the tape that secures the hard-drive cable to the palm rest and keyboard assembly.
