Dell Inspiron 1545 Computer Processing Unit Replacement

Scritto Da: Nathan Lemay
  • Commenti: 1
Dell Inspiron 1545 Computer Processing Unit Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

5 - 10 minuti

Introduzione

This guide will be utilized mainly if your CPU has gone bad and your laptop is essentially nonfunctional.

  1. QfivfuqeUEdjbyWl

    • Before attempting to remove the battery ensure that the laptop is disconnected from all power sources and turned off.

    • Turn the laptop over to its back.

  2. niO5YeKHZrxNBLGa

    • Slide the release latch while simultaneously pulling backwards on the battery.

  3. LgacPsHYg3IgQTHw

    • Slide the battery out of the battery bay.

  4. 1nPYEcv4WlMqZIbF

    • Unscrew the four screws (3mm Phillips #1) that hold the base cover in place.

    • The screws are connected to the base cover by a washer anddo not remove from the base cover.

  5. HNkWSlGYDEoRJNjP
    HNkWSlGYDEoRJNjP
    WEUgugBCCFtpqmhI

    • Carefully lift the base cover vertically away from the laptop.

  6. oBGi2P2sUIPIH3GQ

    • Loosen the 5 screws (4mm, Phillips #1) that secure the CPU Heat Sink to the motherboard.

    • These screws are held in place by a washer so you should not be able to completely remove the screws.

    My fifth screw, (the one towards the bottom), won't unscrew. Anybody that can help?

    Michael Shirley -

  7. SwJE2tkoTOFITDME

    • Pull up on the Heat Sink unit to remove it.

  8. T5clkyQlYkYGHCUM

    • Using a flathead screwdriver, rotate the locking mechanism counterclockwise to the unlocked position.

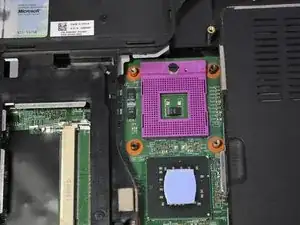

  9. USwy3AL2j6ZnBREd

    • The CPU is very fragile and has thin pins.

    • Remove the CPU by pulling straight upward and away from the laptop.

Conclusione

To reassemble your device, follow these instructions in reverse order.
