Dell Inspiron 15R Keyboard Replacement

Scritto Da: Trixie Gonzalez
  • Commenti: 0
Dell Inspiron 15R Keyboard Replacement

Difficoltà

Moderate

Passi

13

Tempo Necessario

10 - 15 minuti

Introduzione

If most keys on your keyboard are not working, this guide will help you replace the keyboard.

  1. eScueNUKVq5DoaLI

    • Turn the device over and locate the battery.

  2. pxDX2YkXarUrXhE6
    pxDX2YkXarUrXhE6
    ubZ5IMWHPfyR3KHE

    • Place thumbs on each latch and push outwards.

  3. hO1taWArGBwMOC3l

    • Push and slide the battery away from you.

  4. UEZCSmNqU54W1ryX
    UEZCSmNqU54W1ryX
    PTH2h2AFoLRMAuyQ
    bOGwDjsgvuLbxIBl

    • Locate the RAM compartment and the screw on the right hand side. Remove the cover.

  5. crnsZ6iAAqfcIvej
    crnsZ6iAAqfcIvej
    QaaSZUn2EYjTddnM

    • Locate and remove the 2.5 mm x 5 mm screw on the upper right hand side of the compartment.

  6. T1djZKbssh6Zi3p1

    • Turn the device around and open it up.

  7. 1AKTYSsXhERGUUEt
    1AKTYSsXhERGUUEt
    egkdb23gVDRZGqxK

    • Using your index finger, push down on the F1 and F7 keys.

  8. aOJ2liTJtNEiy2JI
    aOJ2liTJtNEiy2JI
    bXWrCD2qKsISCmHt

    • Using your index finger, push down on the x icon and Home keys.

  9. JiiW4UAyYK5q6Q6J
    JiiW4UAyYK5q6Q6J
    EWtIIyDNS5Wey1Mk
    GcuM2jxWsWGK4OGG

    • Locate the keyboard lining (between the black and silver).

    • Place your spudger between the keyboard lining behind the F1 and F7 keys and pull up.

  10. rBQbLXyGckkgbyl3
    rBQbLXyGckkgbyl3
    dA2yMvVNZ2CCLjEu

    • Place your spudger between the keyboard lining behind the x icon and Home keys and pull up.

  11. CDhQTFktnI2gRwLT
    CDhQTFktnI2gRwLT
    rsKjnmFZCcsXIqHg

    • Carefully pull and turn the keyboard over.

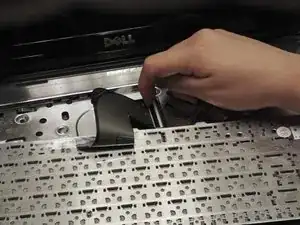

  12. AjIKHn6WdVBCJmYD
    AjIKHn6WdVBCJmYD
    utufXFMNhUXqFKPY

    • Lift the black lever.

  13. PdeTpl3bRmcwoVgA
    PdeTpl3bRmcwoVgA
    hhnsj2tmkcSbCEsS

    • Remove the keyboard cable

Conclusione

To reassemble your device, follow these instructions in reverse order.
