Dell Inspiron 5100 PP07L Hard Drive Replacement

Scritto Da: May Chauvin
  • Commenti: 1
Dell Inspiron 5100 PP07L Hard Drive Replacement

Difficoltà

Very easy

Passi

3

Tempo Necessario

30 secondi - 2 minuti

Introduzione

You will learn how to remove the hard drive.

  1. BPNTyUEPlZA1PJwk

    • With the lid closed, place the laptop upside-down on a flat surface.

  2. wIRxqTv1ZX2aFLWw
    wIRxqTv1ZX2aFLWw
    UFGAgATKBPAJyQrg

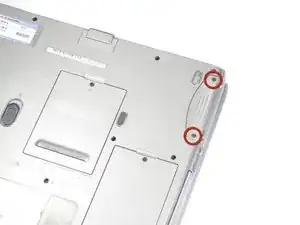

    • Remove the two 5.8mm screws securing the hard drive bay.

    • If the computer was right-side-up and rotated for use, the bay would be found in the rear left corner.

  3. KHKxNLP26CEZSKkN

    • Grasp the plastic bay handle and slide outwards to remove.

Conclusione

To reassemble your device, follow these instructions in reverse order.
