Dell Inspiron 530 Power Supply Replacement

Scritto Da: Doug Howe
  • Commenti: 1
Dell Inspiron 530 Power Supply Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

5 - 7 minuti

Introduzione

This guide will demonstrate removing the computer's power supply.

  1. NwGYw6d1vHDha66L

    • Place the case on its side.

    • Locate and remove the two 13.1 mm thumbscrews.

  2. GLsbDn3OLp1TxP1O

    • Slide the side panel towards the back and remove.

  3. CJ5ZviXcIfyZoW2V

    • Locate the power supply in upper-back corner of the case.

  4. nGkIBlE6WvT6IvWW

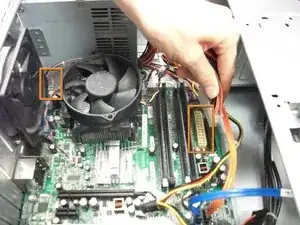

    • Remove the two power cables from the motherboard.

  5. NrB3a1gQcsiNEyaH

    • Remove the power cables from the CD/DVD drive and hard drive.

  6. ncVFBiOxX4uDGYyQ

    • Locate and remove the four Philips #0 8.9 mm screws on the outside of the case.

  7. BHDNUN1NJMXsZg4P

    • Gently remove the power supply from the case.

Conclusione

To reassemble your device, follow these instructions in reverse order.
