Dell Latitude 10-ST2e Charging Port Replacement

Scritto Da: Khawja
  • Commenti: 0
Dell Latitude 10-ST2e Charging Port Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

10 minuti

Introduzione

We're going to teach you how to remove the charging port.

  1. ZAd5WiJSQgxeBsgR
    ZAd5WiJSQgxeBsgR
    QWOCyGREFyeiYqit
    dJJxlHNE12daJBjT

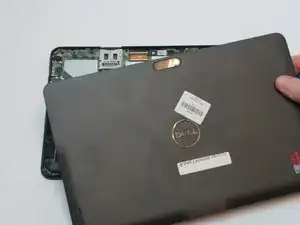

    • Remove the backplate of the tablet by using the plastic opening tool to lift it up.

  2. 512I3QdN5OoLgHj5
    512I3QdN5OoLgHj5
    VLffHcARGOtRGHiF

    • Using a JIS #00 screwdriver, remove the two 4.0mm screws securing it to the motherboard.

  3. gOdvdtDyVudcwfuF
    gOdvdtDyVudcwfuF
    KVmC3ICDFIfTSAcU

    • Lift up the orange clamp connecting the black DOC B/D cable to the charging board.

  4. jggTcFp4XoclWsJN
    jggTcFp4XoclWsJN
    Y1IdZh6COOKmsAAG
    V6hwEI4kvWRABRPx

    • Place the opening tool underneath the charging board, lift up, and slide it out the charging port, along with its board.

Conclusione

To reassemble your device, follow these instructions in reverse order.
