Dell Latitude 3410 M.2 Hard Drive Replacement

Scritto Da: pmalys
  • Commenti: 1
Dell Latitude 3410 M.2 Hard Drive Replacement

Difficoltà

Easy

Passi

7

Tempo Necessario

5 minuti

Introduzione

photos in this tutorial are from this video: https://www.youtube.com/watch?v=wLN417S6...

  1. PSNUF5AcliH2F2ST

    • Unscrew 8 screws with Philips screw driver

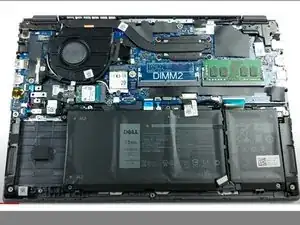

  2. AA36YVIQYfwPXORl

    • Remove bottom part of case by prying on it

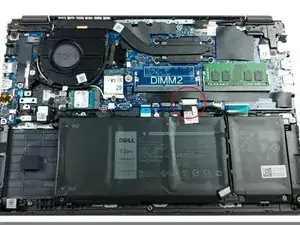

  3. UuipKP3iUUC4gSOA

    • Gently unplug the battery connector

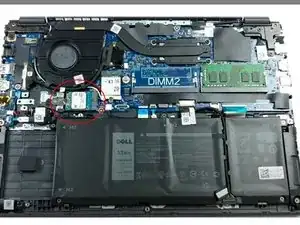

  4. 2ZcutGSehwry6Ytg

    • Locate M.2 storage drive

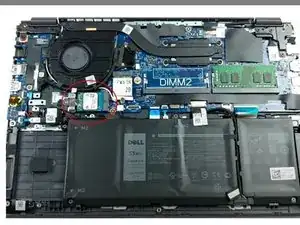

  5. NDjgFthec2ZDArET

    • Unscrew M.2 and replace it with a new one

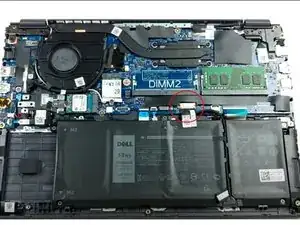

  6. EuRoLvTBHpoJKdJY

    • Plug back the battery

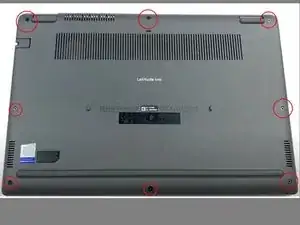

  7. U1OnyFfZtP1eCRlP

    • Screw back bottom case part by screwing in 8 Philips screws

Conclusione

Can be done with tools that anyone should have at home
