Dell Latitude E4310 RAM Replacement

Scritto Da: Jordan Jones
  • Commenti: 0
Dell Latitude E4310 RAM Replacement

Difficoltà

Easy

Passi

7

Tempo Necessario

2 minuti

Introduzione

If your laptop is experiencing slow boot times, poor performance, display issues, or won't boot at all, it may be time to replace the RAM, also referred to as the memory.

To replace the RAM on the Dell Latitude E4310, follow this guide.

  1. Hw6TLUabUv2QPgCG

    • Power down the laptop and remove all power cords.

  2. QbJwOvlGxBDVDc1q
    QbJwOvlGxBDVDc1q
    4RnOB4DcIOqMSXdL

    • Push in the battery release button with your thumb.

    • Pull up on the battery to remove.

  3. T1Gqi6jyrrn4ovyi
    T1Gqi6jyrrn4ovyi
    FHkjJs2O2ZkQjnRa

    • Unscrew the two 4mm Phillips #1 screws.

  4. oUlnpGaxXS5nIY36
    oUlnpGaxXS5nIY36
    hYROZnrbEAxK4JAc

    • Lift up the panel with your finger.

    • The screws are clipped to the panel and will remain attached.

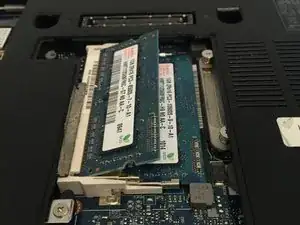

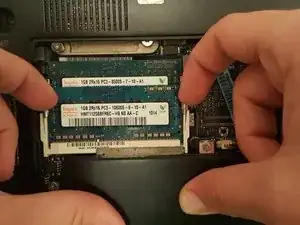

  5. AIysewIGIyI2USVu
    AIysewIGIyI2USVu
    eI6ydKaRPUPuGv5s

    • Pry the two metal clips away from the RAM module until the module pops out of place.

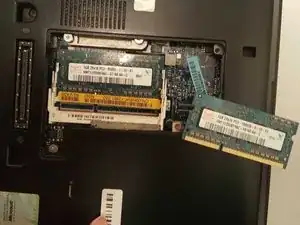

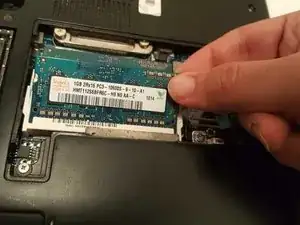

  6. sbbXmiBHfrIFSqDy
    sbbXmiBHfrIFSqDy
    dGAAlvZ5KOHXvnwB

    • Slide the RAM backwards out of its socket to remove.

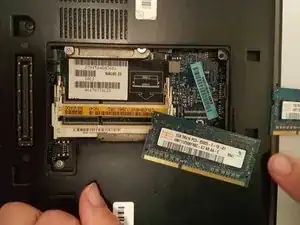

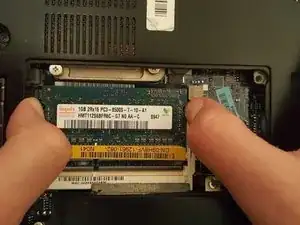

  7. qERHpll6nsNRJuED
    qERHpll6nsNRJuED
    xPbakJsnxYgvMbiK

    • Repeat steps 1 and 2 to remove the second RAM module.

Conclusione

To reassemble your device, follow these instructions in reverse order.
