Dell Latitude E6410 Network Card Replacement

Scritto Da: Stephen Tate
  • Commenti: 0
Dell Latitude E6410 Network Card Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

20 minuti

Introduzione

This guide will walk you through the process of replacing your network card.

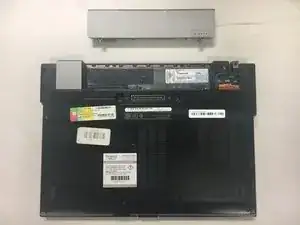

  1. 1vKCxXqvYAc5OWmo
    1vKCxXqvYAc5OWmo
    3HOxgZNVyAAFKgan

  2. ASPysYj1la4ANIZV
    ASPysYj1la4ANIZV
    bD32Yo6LxVOGGcZt

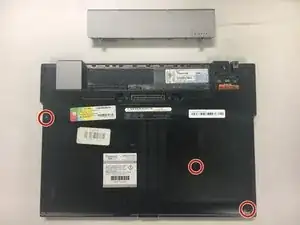

    • Remove the following 5mm screws.

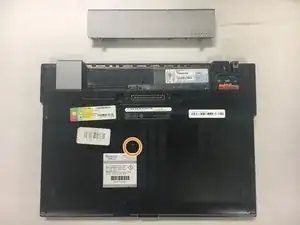

    • Loosen the middle 5mm screw.

  3. VyJOrTd1LVbe1Zfy

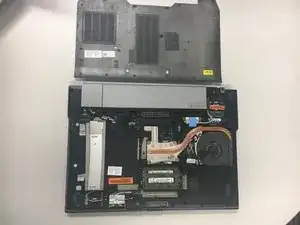

    • Remove the back cover by sliding it downwards.

  4. adWjBF3Xiwe6m5tD
    adWjBF3Xiwe6m5tD
    sLKT2CkamKEeQ6rP

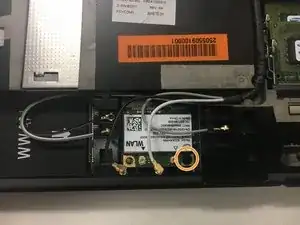

    • Unplug the black and white antenna cables.

    • Remove the 3mm screw.

  5. SGcBkrnRG1oLUZvb

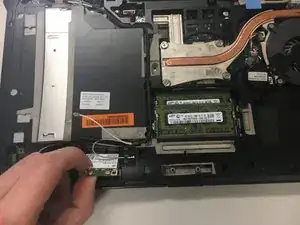

    • Remove network card.

Conclusione

To reassemble your device, follow these instructions in reverse order.
