Dell Latitude E6530 Hard Drive Replacement

Scritto Da: Ella
  • Commenti: 0
Dell Latitude E6530 Hard Drive Replacement

Difficoltà

Easy

Passi

9

Tempo Necessario

10 - 15 minuti

Introduzione

This tutorial will help you to replace/upgrade the HDD/SSD in your Dell Latitude E6530 laptop

  1. XiIUXk41xwJAt2no

    • If the new drive is used, be sure to format it!

  2. t5xbpQmnvhR3e5wM

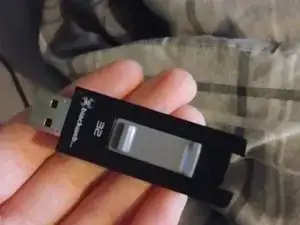

    • Be sure to have a flash drive or DVD with your preferred OS on it.

  3. GFRoZeGU6lBfup6T

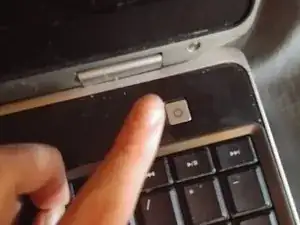

    • Power off the laptop and remove the AC adapter.

  4. vdMVg2smRHVN5NaI

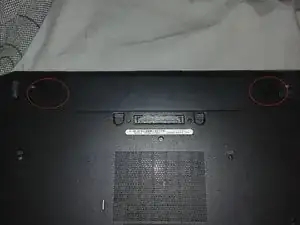

    • Pull back the battery tabs

  5. LKgPPMV4JUlGSVME

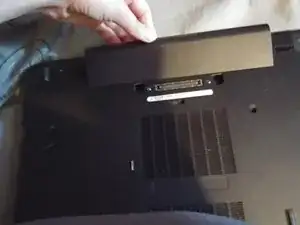

    • Pull out the battery

  6. MaQsNmsRDi11RiDD

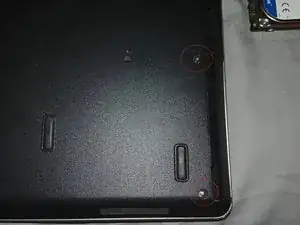

    • Unscrew the 2 Phillips #1 screws holding the drive in.

    • Keep the screws somewhere you won't lose them.

  7. FE4ljXDJ6ttcZv2C

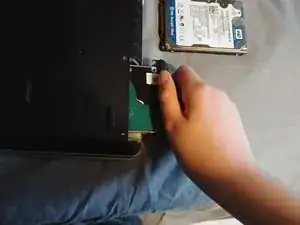

    • Pull out the drive

  8. UtIYK3UGrknwcI5w

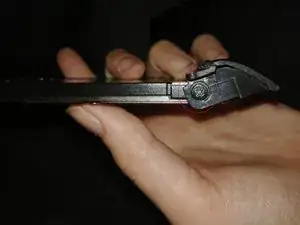

    • Undo the Phillips #1 screw keeping the drive in the bracket.

  9. dusUHCREIQwth3M2

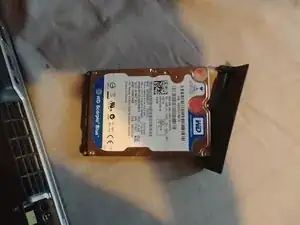

    • Pull out the drive

Conclusione

To reassemble your device, follow these instructions in reverse order.
