Dell Latitude E7450 Base Cover Replacement

Scritto Da: Hezekiah Brown
  • Commenti: 0
Dell Latitude E7450 Base Cover Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

1 - 2 minuti

Introduzione

  1. RkTTNkqXuCYMoW2D
    RkTTNkqXuCYMoW2D
    eXKUkdhXSEaDJOjX

    • Before performing this task, make sure you turn off the computer and disconnect every external drive from it, whether it's a USB drive, power charger, or wireless adapter.

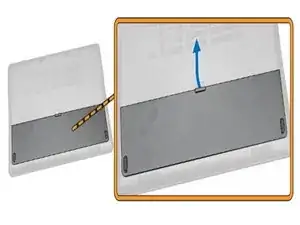

    • Slide the release latch to unlock the battery.

    • Remove the battery from the computer.

  2. A3LvnPWR3v3yQSVP

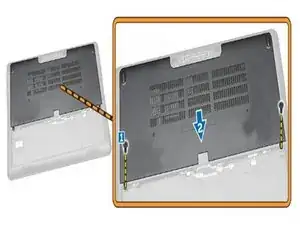

    • Remove the screws that secure the base cover to the computer [1].

    • Slide the base cover to release it from the computer [2].

  3. wpcOJkaxOEZen6kt

    • Remove the base cover from the computer.

    • Place the base cover to align with the screw holes correctly on the computer.

    • Tighten the screws to secure the base cover to the computer.

    • Install the battery back on the computer.

Conclusione

To reassemble your device, follow these instructions in reverse order.
