Introduzione

  1. s2w5EsCMkLDtuNbO
    • Rimuovere batteria

  2. UFcjpfmFLbyPGYft
    UFcjpfmFLbyPGYft
    5uZWPZh2DEHHSZHV

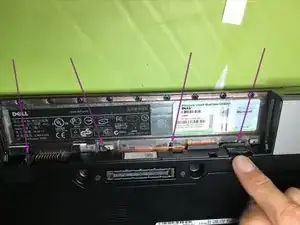

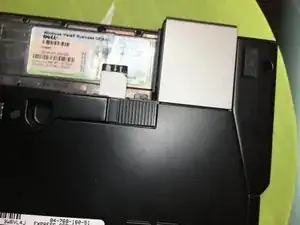

    • Estrarre la card dalle slot tirando la linguetta

    • Facendo leva sugli agganci in plastica si sgancia nella parte anteriore la linea di tasti in alto che danno accesso alle viti fissaggio tastiera

  3. VfNTvYRvJWTBrR2s

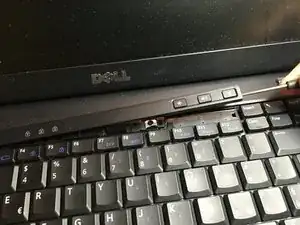

    • Fare leva sotto per estrarre la linea di tasti superiore

  4. lYZkqtrT1AjcLmo6
    lYZkqtrT1AjcLmo6
    VfIQ2WRixRwjWkdm
    l5UNxsrFodPLx6L2

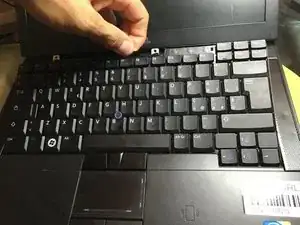

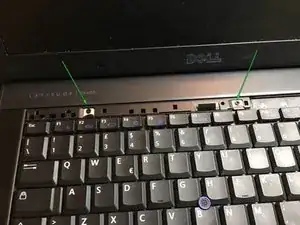

    • Svitare le due viti a croce che tengono la tastiera fissata al corpo notebook

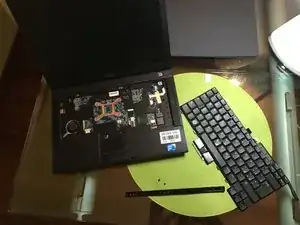

    • Nuova riga.itilizzare la linguetta nera per tirare indietro e verso l'altro per sganciare la tastiera

Conclusione

Per rimontare il dispositivo, segui queste istruzioni in ordine inverso.

Smilzo

Membro da: 09/11/13

11234 Reputazione

2 commenti

ciao and thanks for this guide @smilzo !

I recently had to re-seat the keyboard, which is a common trick for old Dell laptops when the keyboards starts having issues and types nonsense. However after putting it back together, the keyboard doesn’t light up anymore. what am I doing wrong? did I miss a connector?

alfx -

hi, sorry for what happened, try to disassemble the keyboard again and check that the connectors are inserted well on the correct side and that the cable has not broken.  good luck

Smilzo -
