Dell Optiplex 745 Small Form Factor Power Supply Replacement

Scritto Da: Samantha Hsu
  • Commenti: 1
Dell Optiplex 745 Small Form Factor Power Supply Replacement

Difficoltà

Easy

Passi

5

Tempo Necessario

10 minuti

Introduzione

This guide will help you replace the power supply.

  1. XCHqm6cF2OD2pIMM
    XCHqm6cF2OD2pIMM
    URwbcn32NyXYWTsC

    • Pull the tab and the lid will pop up.

  2. ZpAyvrC6FXiViYUH
    ZpAyvrC6FXiViYUH
    CVtxCFSScLFWCLAv

    • Grab the lid and pull it up and off.

  3. b5ZjbEvwLUfeo2F2
    b5ZjbEvwLUfeo2F2
    nUHUBuDVAMAd3CjU

    • Identify the power supply.

    • Remove the two 9.5 mm Phillips screws on the outside of the case.

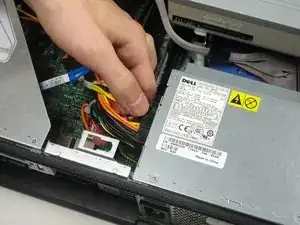

  4. A5xJyppKg6NBohjX
    A5xJyppKg6NBohjX
    HrLnxCvnZMe4V2dj

    • Grab the plastic casing and pull out the bundle of cables from the side of the power supply unit.

  5. sLCUtnKgKMyKEZ1Y

    • Push the power supply from the back and lift from the front.

    • Lift the power supply out of the case.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Samantha Hsu

Membro da: 29/09/14

416 Reputazione

Un commento

good, but that's not the SFF model.

99mmarriott99 -
