Dell Optiplex SX280 Lower Fan Replacement

Scritto Da: Wyatt
  • Commenti: 0
Dell Optiplex SX280 Lower Fan Replacement

Difficoltà

Moderate

Passi

3

Tempo Necessario

10 minuti

Introduzione

Prerequisite Only

Strumenti

  1. DIg2G63HMutPHBeH
    DIg2G63HMutPHBeH
    He1SvVDMR2j5ckXr

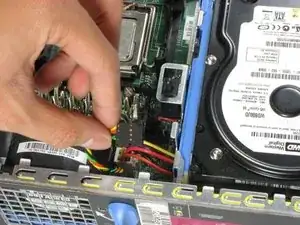

    • Remove the power supply that connects the lower fan to the motherboard, distinguished by it's black, red, green and yellow wires.

    • Make sure to press on the release tab while removing the power connector.

  2. yBnsCAUhLVPMcQR3
    yBnsCAUhLVPMcQR3
    XVHQfw6r3fEaJkUf

    • Remove the rubber grommets from the base of the fan. A spudger may be useful.

  3. FKtNHntqwGl3mDh6
    FKtNHntqwGl3mDh6
    CZvUdgncLL4M31lo

    • Press on the blue release tab and remove the fan.

Conclusione

To reassemble your device, follow these instructions in reverse order.
