Introduzione
Strumenti
-
-

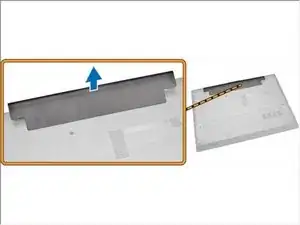

Slide the latches outward [1]
-
Release the battery [2].
-
Lift the battery to remove it from the computer.
-
-
-

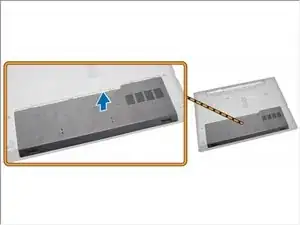

Loosen the screw that secures access panel to computer [1].
-
Slide the access panel from the computer [2].
-
Lift the access panel off the computer.
-
-
-
Remove the screw that secures the hard drive to the computer [1].
-
Slide the hard drive out from the computer [2].
-
Lift the hard drive upwards from the computer [3].
-
Conclusione
To reassemble your device, follow these instructions in reverse order.
