Dell Vostro 3350 Hard Drive Replacement

Scritto Da: Johnathan Hammond
  • Commenti: 0
Dell Vostro 3350 Hard Drive Replacement

Difficoltà

Moderate

Passi

11

Tempo Necessario

10 - 20 minuti

Introduzione

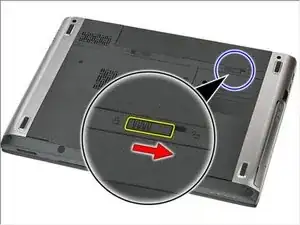

  1. Py3HoJjWgjfFXdol

    • Slide the release latches to unlock the battery.

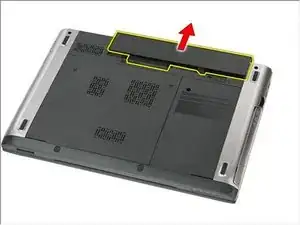

  2. WJrykG6fURfEfIWC

    • Slide the battery and remove it from the computer.

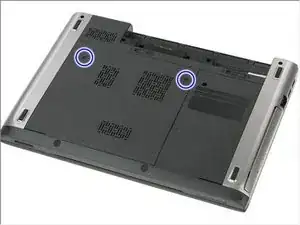

  3. naAr5CBAMhNbodSm

    • Remove the screws that secures the access panel to the base of the computer.

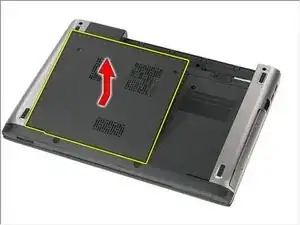

  4. MrjfrQE3JALrdENu

    • Lift the access panel up at an angle and remove it from the computer.

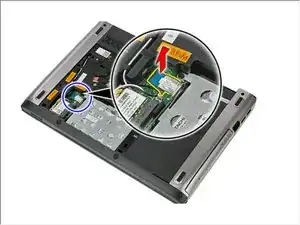

  5. m6R5IsQObSkcfWJ5

    • Open the clip that secures the hard-drive assembly to the computer.

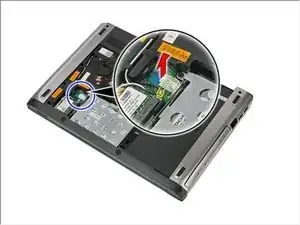

  6. JaYSWMcGOMelIfdF

    • Disconnect the hard-drive cable from the hard drive.

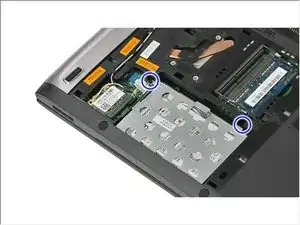

  7. jMunj3AE44gBaBfY

    • Remove the screws that secure the hard-drive assembly to the computer.

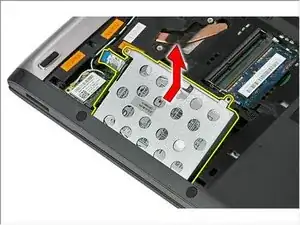

  8. fDEJRFNbs1Fk5ZWO

    • Lift the hard drive up at an angle from the system and remove it from the computer.

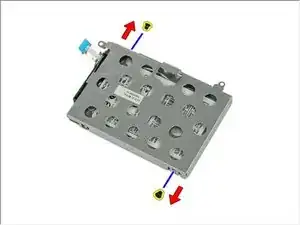

  9. UARc5DYAjTPoAnEg

    • Remove the screws that secure the hard-drive bracket to the hard drive.

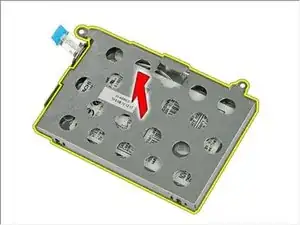

  10. QBlcXxWptnmGNEIS

    • Lift the hard-drive bracket up and away from the hard drive.

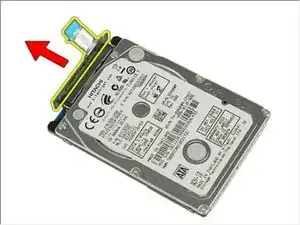

  11. UxWnIPWpvSFCDOGL

    • Remove the hard drive board from the hard drive.

Conclusione

To reassemble your device, follow these instructions in reverse order.
