Dell Vostro 3350 Memory Module Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

6 - 15 minuti

Introduzione

In this guide, we will show you how to remove and replace the Memory Module.

  1. Py3HoJjWgjfFXdol

    • Slide the release latches to unlock the battery.

  2. WJrykG6fURfEfIWC

    • Slide the battery and remove it from the computer.

  3. naAr5CBAMhNbodSm

    • Remove the screws that secures the access panel to the base of the computer.

  4. MrjfrQE3JALrdENu

    • Lift the access panel up at an angle and remove it from the computer.

  5. SyDTBEKhv5KPno2D

    • Pry the retention clips away from the memory module until it pops up.

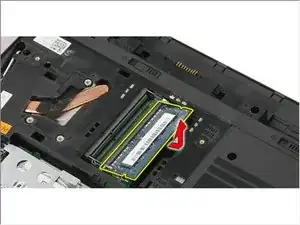

  6. BAGKhlnZXqGodngJ

    • Remove the memory module from its connector on the system board.
