Dell Vostro 3400 Fan Replacement

Scritto Da: Yahaira Nava Gonzalez
  • Commenti: 0
Dell Vostro 3400 Fan Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

10 minuti

Introduzione

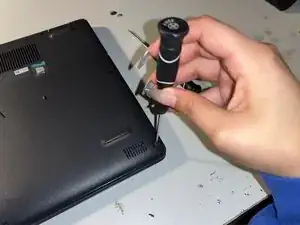

  1. uVjDwWFjJ4u6PqHD
    uVjDwWFjJ4u6PqHD
    SGf1P1CNsoqFVOUT
    hhwinaeUVqPV3TOF

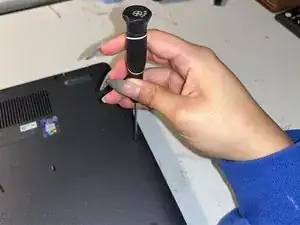

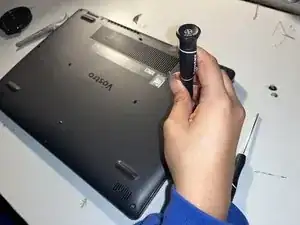

    • Remove the nine screws that keep the back panel in place using the Phillips #00 screwdriver.

  2. jbbLBo5ejtBfVg56
    jbbLBo5ejtBfVg56
    2nkDCcUyjGcADC5E
    EflbIYnRs1RVkpOr

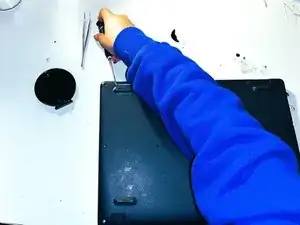

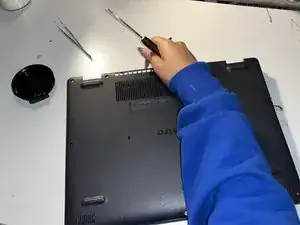

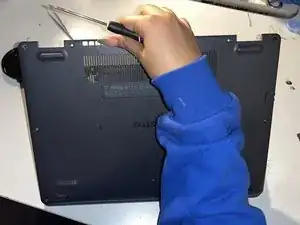

    • Pop the back panel open using a spudger.

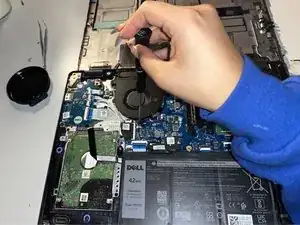

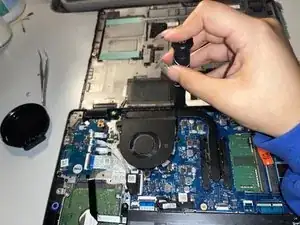

  3. TirjkFNBQCeBZ12Q
    TirjkFNBQCeBZ12Q
    WTW6TmVjmfexePMF
    FCqsukPkQXoM3p3V

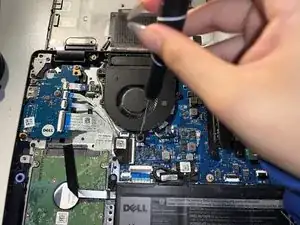

    • Remove the two screws that hold the fan in place using the Phillips #00 screwdriver.

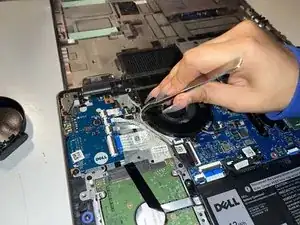

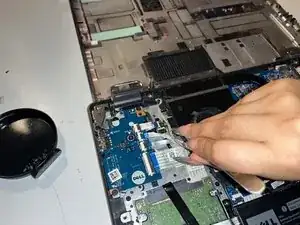

  4. rIGdyXnEJjkJdjBL
    rIGdyXnEJjkJdjBL
    ffGaVKIa1WRor5Ux
    vEGoDHyE1DQxqmTt

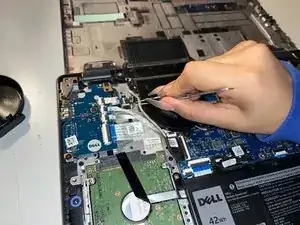

    • Detach the brown wire coiled around the fan using a pair of tweezers.

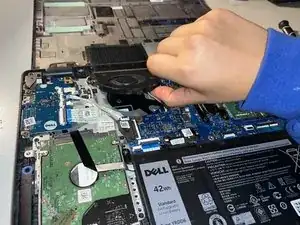

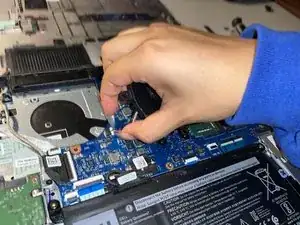

  5. 1eBxfCOjsYNRUNFB
    1eBxfCOjsYNRUNFB
    1vVEZY2DeqYTOq1H
    QIQRrrLJ25rhKLq4

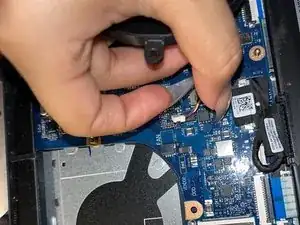

    • Pull out the connection between the fan and the motherboard.

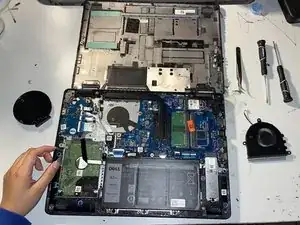

  6. kPmvm45hmtAxcEMf

    • Remove the fan from the laptop.

Conclusione

To reassemble your device, follow these instructions in reverse order.
