Dell Vostro 3560 Optical Drive Replacement

Scritto Da: Max Bareilles
  • Commenti: 0
Dell Vostro 3560 Optical Drive Replacement

Difficoltà

Easy

Passi

8

Tempo Necessario

10 minuti

Introduzione

This guide will show you how to replace the optical drive of your Dell Vostro 3560 laptop. Some of this guide was made with information from this video.

  1. ljW4IyxO5EkL5QpT
    ljW4IyxO5EkL5QpT
    BL26LyRyaXZMuGwg

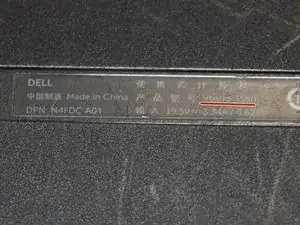

    • Make sure you have the right laptop by checking the sticker.

  2. xdxNTFxYwMEgGwIA
    xdxNTFxYwMEgGwIA
    U3aBlIYhyBy2KNxj

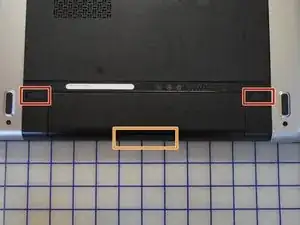

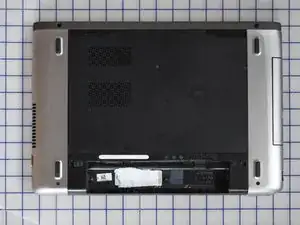

    • Start with your PC shut off and upside down.

    • Pull out tabs.

    • Pull up on rail to remove battery.

  3. cL1TwWqMRXy3pQdg

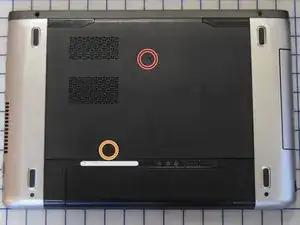

    • Remove the two screws:

    • One M2 Phillips screw (Fixed)

    • One 5-mm M2 Phillips screw

  4. 1patoIBc5tCNQqmf
    1patoIBc5tCNQqmf
    t1wGu1EHZBLogwTR
    To1VXMPiW5pDb1vO

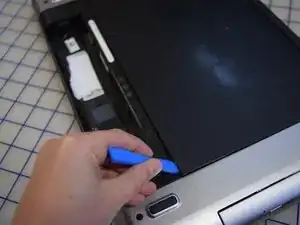

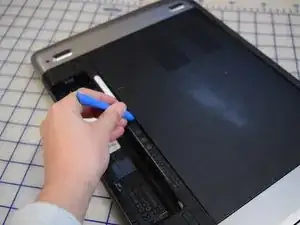

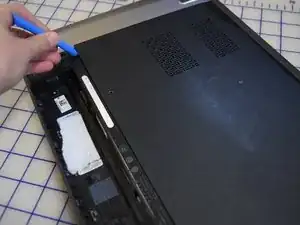

    • Use a iFixit opening tool to remove the back panel.

  5. lnfQxFnvG3BEIuGZ

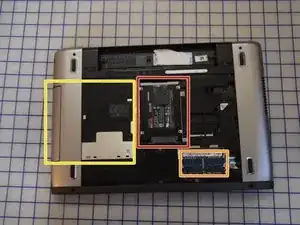

    • From here you can access:

    • The hard drive

    • The RAM.

    • The CD Drive.

  6. uvLeoddOtuHfFMM6

    • We will focus on the Optical Drive.

  7. aZ3mQfuPVjdYqefh

    • Remove the 3-mm M2 Phillips screws.

  8. HYVJi6jwHWwkjDmN
    HYVJi6jwHWwkjDmN
    EgUUQghHXQkRKP4w
    vfMHWXHSEFChqDs5

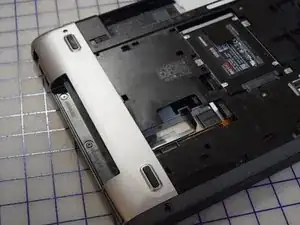

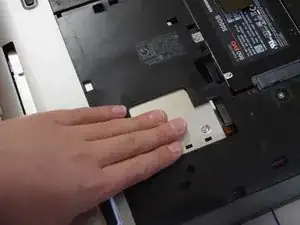

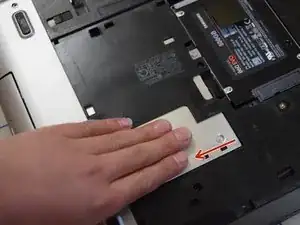

    • Pull the optical drive out of the frame.

    • If it doesn't come out immediately, you might have to shake it.

Conclusione

To reassemble your device, follow these instructions in reverse order.
