Dell XPS 18 Left and Right Speakers Replacement

Scritto Da: Austin Weir
  • Commenti: 0
Dell XPS 18 Left and Right Speakers Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

15 minuti

Introduzione

This guide will show you how to properly remove and replace the left or right speaker of your Dell XPS 18.

  1. stUOnfnBUE6YN5x3

    • Turn the device on its screen.

    • Remove the ten 4mm screws using a T8 Torx screwdriver.

  2. EsppVhHdF4hHa6VF

    • Gently flip out support feet located near the bottom of device.

  3. P4B3cAjtRTeQ3VGb

    • Gently lift the back cover off the device. The back cover should come off easily.

  4. np1QAaTJRlfuDTWD
    np1QAaTJRlfuDTWD
    B6UPBRmtt6RaEDNk

    • Use the plastic opening tool's angled edge to lift the clasp securing the copper colored volume control cable.

    • Disconnect the volume control cable and pull it back.

  5. DK2AGZpHS2QMbWAl

    • Firmly pull the blue speaker cable loose.

  6. 6OOjA6Gg1qQnQdTM

    • Remove the two black 4mm screws with a Phillips 00 screwdriver.

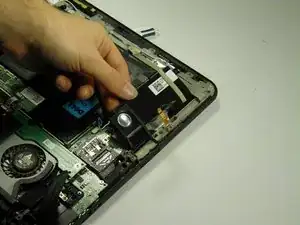

  7. uqW5kDuVm6PaXdVh

    • Carefully remove the speaker.

    • To remove the right speaker, follow these same steps.

Conclusione

To reassemble your device, follow these instructions in reverse order.
