Dexter UP20 Cordless Circular Saw Bottom Guard Replacement

Scritto Da: Slava Korchmar
  • Commenti: 0
Dexter UP20 Cordless Circular Saw Bottom Guard Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

6 minuti

Introduzione

Strumenti

  1. Remove the battery from the <a href="../../home/external_content?url=https%3A//www.leroymerlin.fr/v3/p/produits/scie-circulaire-brushless-dexter-up20-20v-sans-batterie-e1504976811" rel="nofollow noopener noreferrer">circular saw</a>. Turn the Allen wrench to detach the external flange.

    • Remove the battery from the circular saw. Turn the Allen wrench to detach the external flange.

  2. Remove the blade and the internal flange.

    • Remove the blade and the internal flange.

  3. Remove the tension spring. Remove the screw of the bottom guard.

    • Remove the tension spring. Remove the screw of the bottom guard.

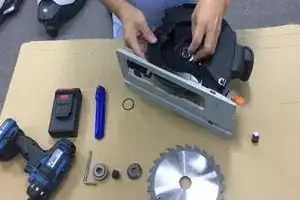

  4. Remove the bottom guard from the device.

    • Remove the bottom guard from the device.

Conclusione

To reassemble your device, follow the instructions in reverse.
