DigiLand DL700D Motherboard Replacement

Difficoltà

Moderate

Passi

10

Tempo Necessario

20 minuti

Introduzione

This guide will show how to replace the mainboard in the event of failure. The process is relatively simple, though some soldering will be required. It is advised to review soldering techniques here.

  1. DcidFJ6EfqCCRMPP
    DcidFJ6EfqCCRMPP
    CiKHoy1Hr2KbpIhM
    1KyU3GKZL1DDpBeB

    • Remove the device's back cover using the plastic opening tool.

  2. SBTUQuOeZRQmR1Ks
    SBTUQuOeZRQmR1Ks
    SqoAALjlxKbyNlKV
    waSQYbI1kJbWha1E

    • Remove the three pieces of adhesive placed over the edges of the battery.

  3. 6lV4NQgOCDNihx42

    • Remove the wifi antenna from the bottom of the battery.

  4. FIGDVMCFuG21WndN
    FIGDVMCFuG21WndN
    2SkAWC6sRwQmtART
    tsEkNEfoHYa3OIaX

    • Heat up the soldering iron, proceed to desolder and remove the battery connections.

  5. oJ4qYlKvNbkqMIWm
    oJ4qYlKvNbkqMIWm
    cOvSUTkUJIIFTIhw
    Hm35bfZucpIMUZra

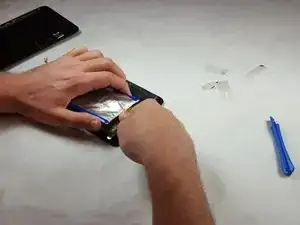

    • Remove the battery from the casing using a nylon spudger.

    • Be careful not to puncture the battery casing.

    • Carefully peel the battery free from the casing.

  6. 6REy5A4INMp2DE3w

    • Desolder the WiFi antenna from the motherboard.

  7. PbUDp1TBJhYAESjn
    PbUDp1TBJhYAESjn
    VvwCUJmmUNZFHBx4
    IQxGVbBAZEY4FyRC

    • Remove 3 ribbon cables attached to the motherboard by lifting the plastic retainer, then pulling the cable out.

  8. l1nHVCfBfUQnZFx2
    l1nHVCfBfUQnZFx2
    B1uIWReTiVNKHcFO

    • Remove adhesive attaching the motherboard to the casing.

  9. nHRP2QWIorVFJY5U
    nHRP2QWIorVFJY5U
    jcSUsklsgtkDBQoL
    QNZfeYtBPNHppNFM

    • Remove the three 2.5 mm Phillips #1 screws holding the motherboard to the case.

  10. RlItMhSToDRmBSBl
    RlItMhSToDRmBSBl
    35oLawNovBpUeSuY
    nWFOxDm45ADoogu2

    • Remove motherboard from the case and replace.

Conclusione

To reassemble, follow these instructions in reverse order.
