Disassembling DeWalt D28110 Back Panel Disassembly

Difficoltà

Easy

Passi

4

Tempo Necessario

5 - 10 minuti

Introduzione

Prerequisite Only

  1. yk6cLV1GvMwSpPKt

    • Using the T-15 screwdriver, remove the four 22-mm torx screws holding the back panel in place.

    • Unplug the grinder before any disassembly.

  2. CYZJCMyBYb2URwWQ

    • Use the edge of the spudger to loosen and remove the back panel.

  3. PLZAr4uLEpTJuGXf

    • Remove the single 20-mm torx screw holding the rear panel in place.

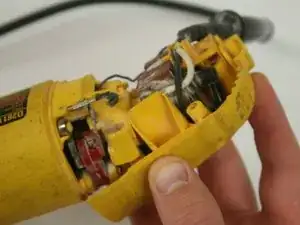

  4. HLHKoxSo4jLTAEJB

    • Pull back the rear side of the back panel.

Conclusione

To reassemble your device, follow these instructions in reverse order.
