Disassembling Dell Inspiron One 2020 Back Cover

Scritto Da: Tyler
  • Commenti: 1
Disassembling Dell Inspiron One 2020 Back Cover

Difficoltà

Very easy

Passi

3

Tempo Necessario

5 minuti

Introduzione

  1. ga1g5gxVjCDeqdrA
    ga1g5gxVjCDeqdrA
    dKJ3K4JdOMqiwi6D
    615hDwWLs6fWUUaj

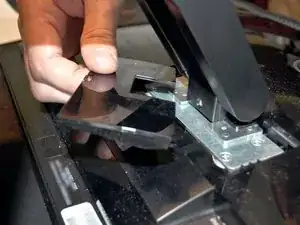

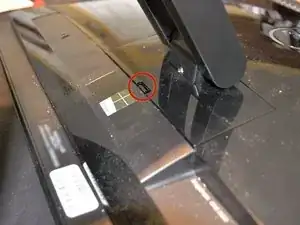

    • Place the all in one computer face down on a soft, clean surface to avoid scratching the front.

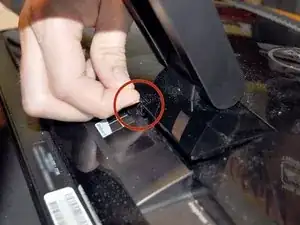

    • Press the tab on the stand cover and lift up.

  2. bGHifCJCEUmgjV4g
    bGHifCJCEUmgjV4g
    NDetKhAjPLyIMsB4
    WTNsUqYLHQwQA15k

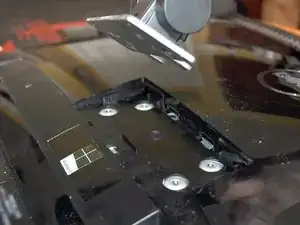

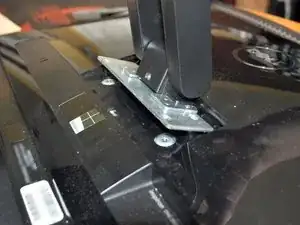

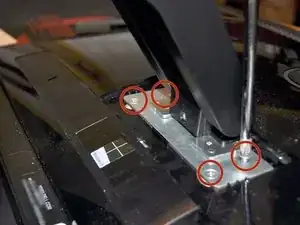

    • Remove the four phillips screws that attach the stand to the computer.

    • Tilt the stand up and out.

  3. yRLtQMFyxK2rDIwt
    yRLtQMFyxK2rDIwt
    tBQwInOZbvoNSpaA
    rjhZ4T2EmJPG4oID

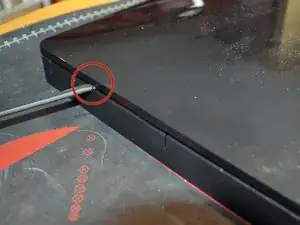

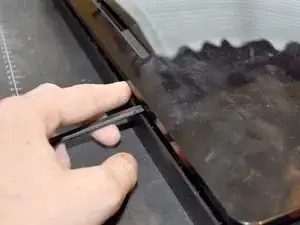

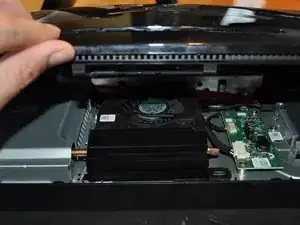

    • Starting from the optical drive, pry the back cover up with a plastic spudger.

    • The cover is held in place by fragile plastic clips. Careful to not break them.

Conclusione

To reassemble your device, follow these instructions in reverse order.
