Introduzione

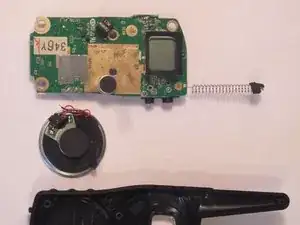

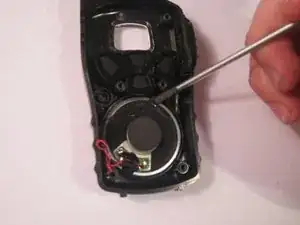

The speaker is attached to the circuit board with two wires and is glued onto the front case. After the speaker is removed the new speaker will need to be re-glued and re-soldered into place.
Strumenti
Ricambi
-
-

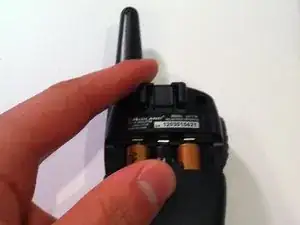

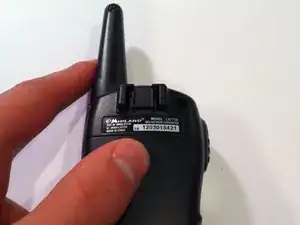

First, apply pressure with your thumb on the top of the battery cover.
-
Next, pull down on the cover until it begins to slide.
-
-
-

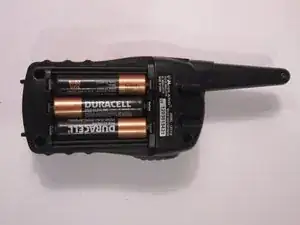

Finally, once the cover is completely off, pry up the old batteries with your finger or a strong, skinny tool (i.e. spudger).
-
-
-

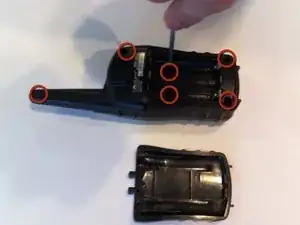

Unscrew the six 8.0 millimeter long, #0 screws on the backside of the case using the Phillips #0 screwdriver.
-
-
-

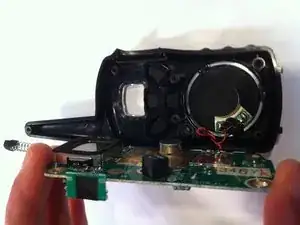

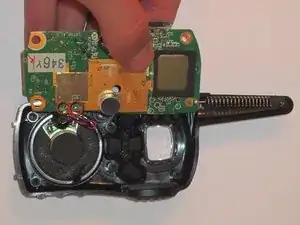

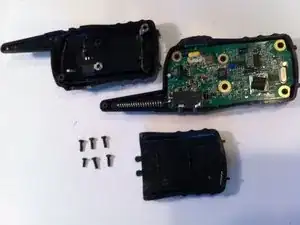

Remove the circuit board from the front part of the radio case.
-

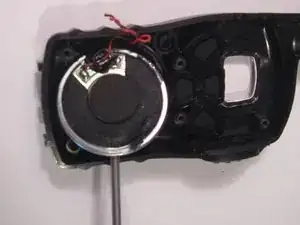

Clip the red and black connecting wires at the base closest to the circuit bored in the spots denoted by the two red circles.
-
To reassemble your device, follow these instructions in reverse order.
