Disassembling Over-Ear Headphone Sennheiser HD4199

Scritto Da: forevergoku
  • Commenti: 1
Disassembling Over-Ear Headphone Sennheiser HD4199

Difficoltà

Easy

Passi

6

Tempo Necessario

10 - 15 minuti

Introduzione

By far the most common fault with headphones is a broken lead or cushion. If the break is within the headphones themselves or at that end of the lead you will need to disassemble them in order to replace the lead or shorten it to eliminate the break.

  1. xXP3YCOjElHhWTaR
    xXP3YCOjElHhWTaR
    3p2BlMBpTLQaTYBC
    vaLA3umhJlW2pwlZ

    • Use two or three fingers slowly pull the cushion.

    • Caution: go gently and try not to apply too much force.

  2. nYNLC6IxThjDZgR1
    nYNLC6IxThjDZgR1
    QhO3mR5cAfHrOtuf

    • By feel, locate 4 screws under the foam, 2 each side.

    • Scrap away just sufficient foam in order to be able to remove the screws, and remove them.

  3. fZKw2D4vps1EvTYG
    fZKw2D4vps1EvTYG
    JNaEmVhvNRTnYUa6

    • The speaker assembly is now held in the shell just be a number of tabs around the edges. Gently prise it out from these tabs and remove it.

    • Take care not to strain the wires.

    • On reassembly, make sure the headband fork is correctly positioned otherwise it will be impossible locate the speaker faceplate correctly in the shell.

    • Also on reassembly, make sure the speaker face plate is secured behind all the tabs.

  4. ZepOKOgR1jAxOae2
    ZepOKOgR1jAxOae2
    PalK3eqWpRUJQKpX

    • On the right side connection are made via a small printed circuit board. Remove 2 screws in order to remove this for re-soldering or replacement of any of the wires.

    • On replacing this circuit board, take care to ensure that it's both the right way round and the right way up

    • If you are replacing the main lead with the jack plug on the end, make sure that you have suitable strain relief to prevent the lead pulling on the soldered connections.

    • The wire colours are:

    • Right: Red

    • Left: Green

    • Common (Ground): Gold.

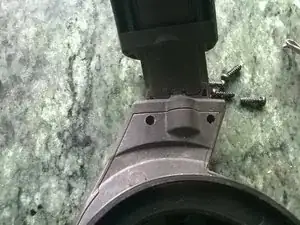

  5. 4uutx1hMybKIsVkv
    4uutx1hMybKIsVkv
    mFPQTynCsvVBIJOH

    • Insert wisdom here.

  6. kQBMb42t6WXFP6wZ
    kQBMb42t6WXFP6wZ
    G5vLWJleC4HJxVlD
    KXwCvfNkUtMnsjOB

    • Insert wisdom here.

Conclusione

To reassemble your device, follow these instructions in reverse order.
