Disassembling Samsung SPH-A760 Keyboard

Scritto Da: David
  • Commenti: 0
Disassembling Samsung SPH-A760 Keyboard

Difficoltà

Moderate

Passi

8

Tempo Necessario

10 minuti

Introduzione

How to remove keyboard

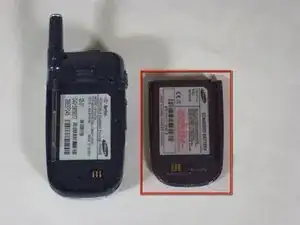

  1. jebwdkg2B4F4IHpU
    jebwdkg2B4F4IHpU
    qOeyM5PJFlCBgVWo

    • Push open the latch and remove the battery.

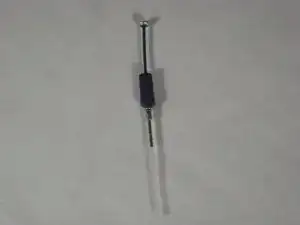

  2. LI4GFkpWlRlL6tE5
    LI4GFkpWlRlL6tE5
    cLpMKLcJY2ECMPGm

    • Twist off the antenna.

    • Pop off the transparent cylinder.

  3. pxSnIZwNHfXV3PaI

    • Remove the five screws as shown.

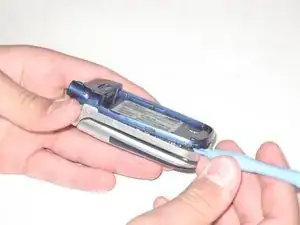

  4. PmPCQv2yWnfgZQWP

    • Carefully pry the back plate off.

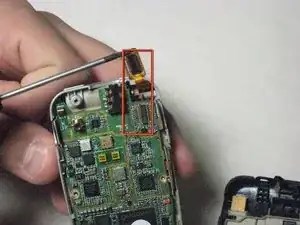

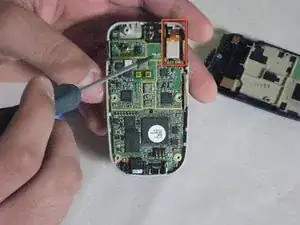

  5. vcMChtlwfCro3CCK
    vcMChtlwfCro3CCK
    VhjBu5aDwmkUhXs2

    • Carefully detach golden screen connector.

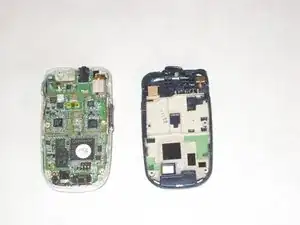

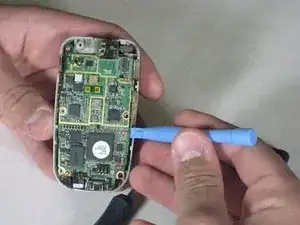

  6. MVJXIUYwUMiundF2
    MVJXIUYwUMiundF2
    Lk3CONrqLB6XZNOL

    • Pop out the logic board with spudger.

    • Caution: Do not touch with bare hands, use tweezers or wash hands before contact.

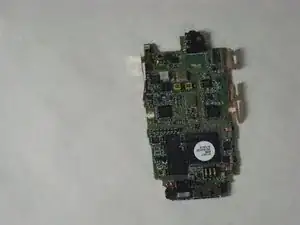

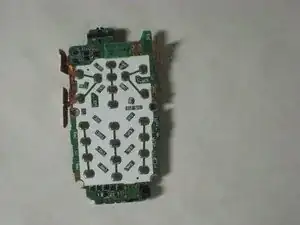

  7. 4YcCD411KL5MY5Ba
    4YcCD411KL5MY5Ba
    DyFlOPEPODEKZWDY

    • Place the logic board on a clean tray.

  8. FTF2Lfa65LEgkxsd

    • Peel off the keyboard.

Conclusione

To reassemble your device, follow these instructions in reverse order.
