DualShock 4 Ribbon Cable Replacement

Scritto Da: Mohamed Ahmed
  • Commenti: 3
DualShock 4 Ribbon Cable Replacement

Difficoltà

Moderate

Passi

18

Tempo Necessario

20 - 40 minuti

Introduzione

If your DualShock 4 controller consistently fails to charge, use this step-by-step guide to replace a faulty ribbon cable as it is typically the root of the problem.

Before following this guide, disconnect your controller from the PS4 console.

  1. X5wSfxicAxSko1Zg

    • Check the model number on the back of your controller. This guide was written using model CUH-ZCT1U. If you have another model, the guide procedure and replacement parts may differ slightly.

    • If you have the second generation DualShock 4, model CUH-ZCT2U, use these guides.

  2. w1u5HLFRbQIP2d2F
    w1u5HLFRbQIP2d2F
    pJuWDOWVmAmLyI6V

    • If you need to stabilize your controller during this repair, lay it on a soft surface such as a microfiber cloth.

    • Use a Phillips screwdriver to remove the four 6.4 mm-long screws securing the rear case.

    to re-torque these PH00 screw... i found 19Ncm to be about the max. (since 27Ncm was too much)

    Dreamcat 4 -

  3. NgnhjUOrfuwMJyov
    NgnhjUOrfuwMJyov
    cwbJVa63FyosD31P
    HvrmieUp6UwVcySs

    • Use an opening pick to pry each corner of the L1 button from the front case.

    • Cover the button to prevent it from ejecting out of your workspace.

    • Remove the button.

  4. AJugiOXGbAhQ1BMq

    • Use your opening pick to pry and remove the R1 button, just as you did for the L1 button.

  5. B1xF1WqHbfBoBJtF
    B1xF1WqHbfBoBJtF
    EHOhhIPKfA2DZQfI
    McHyyAQtKhIUOHJO

    • Six plastic clips secure the rear case to the front case. The next four steps demonstrate how to release these clips before you can open the controller.

    • Insert your opening pick at a downward angle between the front case and rear case, halfway between the handle and the action buttons.

    • Slide your pick toward the handle and pry up to release the first clip.

    • Repeat this procedure on the other side of the controller to release the second clip.

  6. j1WZgSo6o3TaODlg
    j1WZgSo6o3TaODlg
    eRF1MNwAMFijHfw4
    ocNfVkqvnbtCNBcd

    • Two more clips secure the rear case near the extension port and the headphone jack.

    • Insert your opening pick between the front case and rear case at either side of the ports.

    • Twist your pick to unclip this section of the rear case from the front case.

    • If the rear case feels stuck, insert and twist your pick from different angles.

    • Don't open the controller yet, as it's still held together by two very delicate clips near the triggers.

  7. jf5SveEdOwRIGhJq

    • The final two clips are very delicate, and must be disengaged from inside the controller. If you break them, don't worry—it won't affect this repair or your controllers functionality.

    • Locate the clips by looking through the gap above the R2 or L2 buttons.

  8. qQcyUfycauX1EUE6
    qQcyUfycauX1EUE6
    YFUPEeSZZqPY4U1E
    OHcMVCNj4VJZWyNC

    • Insert the point of a spudger through the gap above the R2 button and push the retaining clip outward.

    • While pushing the clip outward, slowly pull the rear case away from the front case until you feel them separate.

    • Don't fully open the controller until each of the R2 and L2 clips have been disengaged.

    • Repeat this procedure for the clip near the L2 button.

  9. PKcRjl2CIQogpTKp
    PKcRjl2CIQogpTKp
    fip3U51QOcVGEXVJ
    u6ZnJrwXE1clORUW

    • Press the R2 button and slide the rear case over it.

  10. KP2vxXGWlaTfsUDK

    • Press the L2 button and slide the rear case over it.

  11. 3hhTNdLYVWIBGeVA
    3hhTNdLYVWIBGeVA
    hfTvkNdF3uokn4Pa
    GXsRCZqUChYpLy1d

    • Flip the rear case over the top of the controller and lay it down, being careful not to strain the interconnect cable.

  12. nCng6Fw1GK6utOG1
    nCng6Fw1GK6utOG1
    SZUVqTnFbaQPaXbq
    5sWqh1SoSQhBsOFd

    • Use tweezers or your fingers to remove the interconnect cable by pulling its blue pull tab straight out of the socket.

    • During reassembly, reconnect the cable with its blue pull tab facing the outside of the controller.

    On the model CUH-ZCT2E the circuit board is mirrored so that the connection is on the left side. When reassembling the blue tab should be facing inwards.

    Konrad Skeri Ekblad -

  13. wHJhajYtDYFVivr3

    • Use your Phillips screwdriver to remove the two 6.4 mm screws securing the light guide bracket to the rear case.

    No screws in mine - lift one side then the other - asymmetric clips.

    Louis Kleiman -

  14. lElsC4ww6LAogtZO
    lElsC4ww6LAogtZO
    tZgykh5o3oHlOlQ2
    5y5Hv4FMFLDcAWy5

    • Remove the black spacer and white bracket from the light guide.

  15. aeJ12wfGaYPq5cch
    aeJ12wfGaYPq5cch
    olfGmbkIAhhlPXha
    qy6GpQB3WlKlscMJ

    • Peel both foam pads from the light guide.

  16. fD6IbDRmDkctvDpE
    fD6IbDRmDkctvDpE
    GRkJd1NEnyPSuOV3
    tNOhr1fYN6OGfTWN

    • Grab and lift the light guide from its alignment pegs on the rear case.

    • Remove the light guide.

  17. UKkYyR22yaeOebkW
    UKkYyR22yaeOebkW
    pAOCbKntVLjZncsI
    B1SAJk14LWdjfSZc

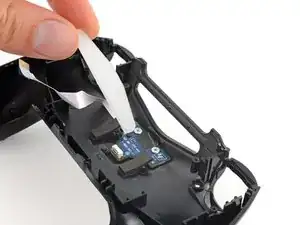

    • Push the light diffuser through the inside of the rear case and remove it.

  18. K3t4muJvQP4EXsaG
    K3t4muJvQP4EXsaG
    pANJ1ISrDHYPVQxU

    • Use your thumb to hold down the clear plastic cover to create space to remove the ribbon cable.

    • With the cover held down, use tweezers to remove the faulty ribbon cable.

Conclusione

To reassemble your device, follow these instructions in reverse order.
