Dyson Pure Cool AM11 Base Replacement

Scritto Da: Gregory Crimmins
  • Commenti: 0
Dyson Pure Cool AM11 Base Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

5 minuti

Introduzione

This Guide is to help you if you need to get access to the inside of your fan to fix wire the motor or other parts. We will walk you through the steps to safely open it up and put it back together.

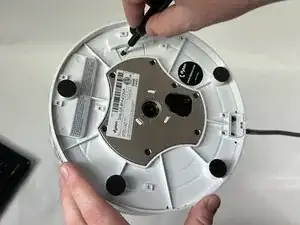

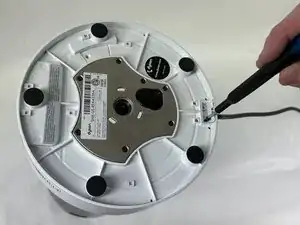

  1. DjtbMWqBFWTym6Dc
    DjtbMWqBFWTym6Dc
    4JmnxSqEBZ3KYsSV
    ESPSpAoDtIlpPecp

    • With the device flipped upside down, use a Phillips #1 screwdriver to remove the 4 screws holding the 3 tabs down.

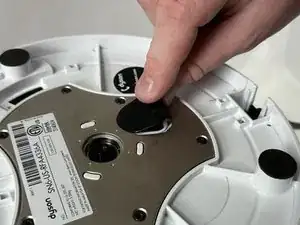

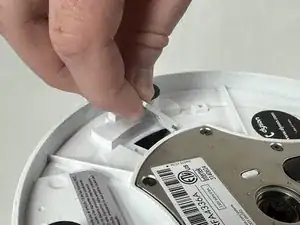

  2. jVU3WJWKFkeGrV1R
    jVU3WJWKFkeGrV1R
    nOJB6hf4PXHReoQY
    ToiaBASbHeDPHPkb

    • Remove all 3 tabs that you unscrewed.

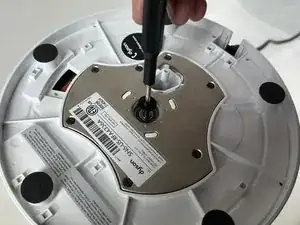

  3. iHjq3MZkIbfqfGuY
    iHjq3MZkIbfqfGuY
    ExIrRPPo1IGHEGSu

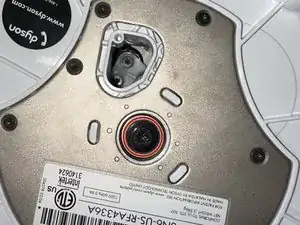

    • Using a Torx T20 Screwdriver, remove the screw in the center of the base.

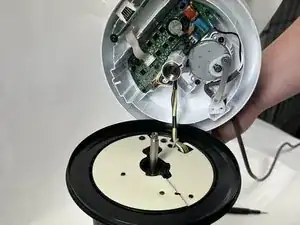

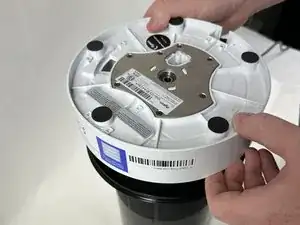

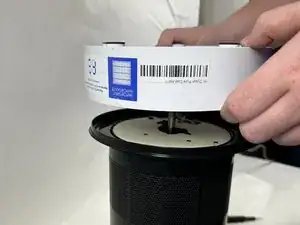

  4. Ie3FejqpWVxlBfaL
    Ie3FejqpWVxlBfaL
    6ewG3cVyMdqRjIiJ
    XIOPZYYftRl2hDLU

    • Lift the base of the housing from the rest of the fan.

    • Be careful not to pull too hard while lifting the lower body housing as there is wires that run throughout the housing that could be damaged if too much force is used.
