Dyson Pure Cool AM11 Oscillation Motor Replacement

Scritto Da: AidenManchester
  • Commenti: 1
Dyson Pure Cool AM11 Oscillation Motor Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

10 minuti

Introduzione

If, after consulting the troubleshooting page, you believe your oscillation motor has blown, this guide will walk you through accessing it to do your own repair/replacement. The oscillation motor is wired directly into the devices main circuitry and thus requires knowledge and experience to replace. This guide will simply cover how to access and remove it.

  1. DjtbMWqBFWTym6Dc
    DjtbMWqBFWTym6Dc
    4JmnxSqEBZ3KYsSV
    ESPSpAoDtIlpPecp

    • With the device flipped upside down, use a Phillips #1 screwdriver to remove the 4 screws holding the 3 tabs down.

  2. jVU3WJWKFkeGrV1R
    jVU3WJWKFkeGrV1R
    nOJB6hf4PXHReoQY
    ToiaBASbHeDPHPkb

    • Remove all 3 tabs that you unscrewed.

  3. iHjq3MZkIbfqfGuY
    iHjq3MZkIbfqfGuY
    ExIrRPPo1IGHEGSu

    • Using a Torx T20 Screwdriver, remove the screw in the center of the base.

  4. Ie3FejqpWVxlBfaL
    Ie3FejqpWVxlBfaL
    6ewG3cVyMdqRjIiJ
    XIOPZYYftRl2hDLU

    • Lift the base of the housing from the rest of the fan.

    • Be careful not to pull too hard while lifting the lower body housing as there is wires that run throughout the housing that could be damaged if too much force is used.

  5. QrmIrWZP2CTHfOV3
    QrmIrWZP2CTHfOV3
    wiHQmbG4iwsORYqp

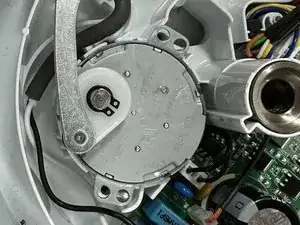

    • Using a T20 Torx screwdriver, remove the two screws on either side of the motor.

  6. XBtoNchFl1FKXaD1
    XBtoNchFl1FKXaD1
    v41JClux2CfoxNUY

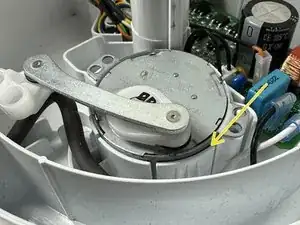

    • (Optionally) Use a jimmy around the edge of the motor to loosen it from its housing.

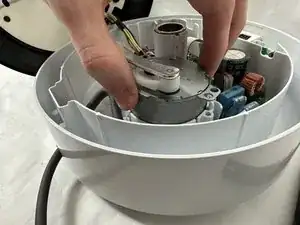

    • Lift the motor out of its housing.

    • Ensure that you do not grab the motor by the swing arm as you may damage both the motor and surrounding components.
