Dyson V10 Motorhead Disassembly

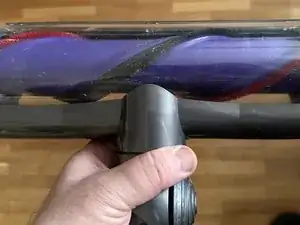

Translucent cover before and after cleaning.

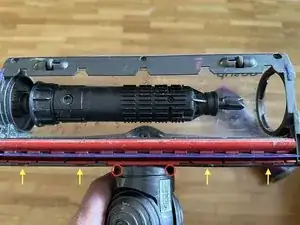

Remove red lid by releasing the clamps (yellow arrows) with a spudger to get access to more screws, that hold the translucent shield.

Remove Two Torx screws that hold the silver cover-plate on the opposite side of the motorhead that covers the translucent shield.

Remove the rotating brush by realeasing it with a coin.

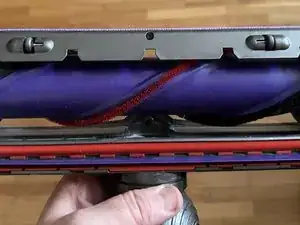

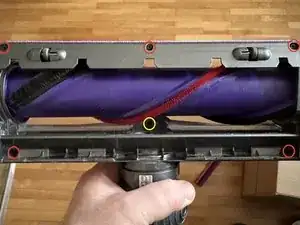

Remove the five Torx screws (red), that hold the translucent shield.

Remove the single shorter Torx screw (yellow), that fixes the silver and the translucent shield.

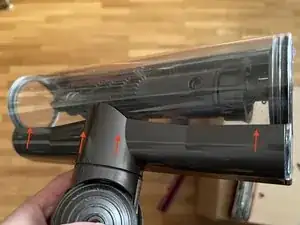

Remove the silver shield by gently pulling into the directions of the red arrows. (This is the only tricky part of the whole procedure.)

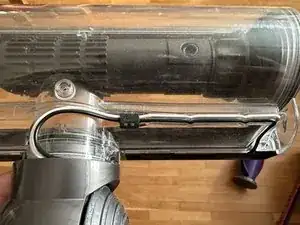

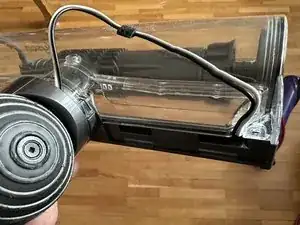

After removal of the silver-shield the translucent shield can be removed easily. The black and white cables are attached with the black plug and can be reattached easily on reassambly.

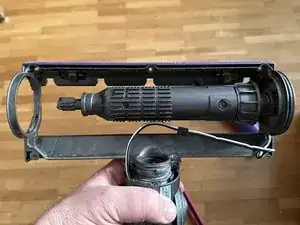

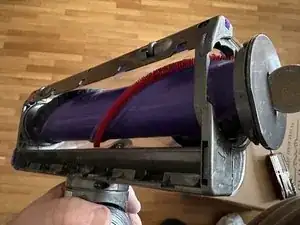

After removal of the translucent shield, both the shield and the silver-skeleton that holds the rotating motorhead can be cleaned thoroughly.
