Edwin the Duck Rubber Gasket Seal Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

5 - 10 minuti

Introduzione

The motherboard compartment is the central identity of the duck and if water gets inside of it, Edwin will no longer work. With this guide, we are going to help you through the steps of replacing the rubber gasket seal, which prevents water from entering the motherboard compartment of Edwin.

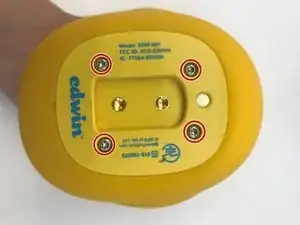

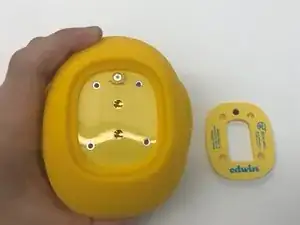

  1. mpHDhWkpIIkSwnc1
    mpHDhWkpIIkSwnc1
    mLy3uSEY1RkGCXV2

    • Unscrew the four 9mm screws with aT8 bit

    • Take the back plate off

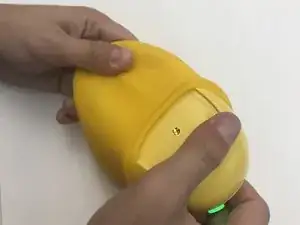

  2. 3rs1b2pwucJ1yfY2
    3rs1b2pwucJ1yfY2
    yGnCbYiNbafXgWPh

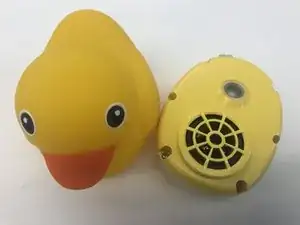

    • Carefully take off the rubber skin.

    • Be patient and don't rush. You don't want to rip or damage the rubber skin otherwise you will lose the waterproof cover.

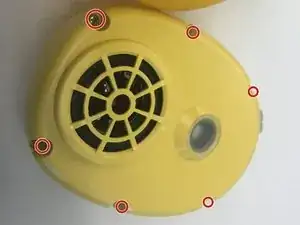

  3. sESwLoJNBQdYgDw6

    • Using the J1 bit, unscrew all six 9 mm screws around the border.

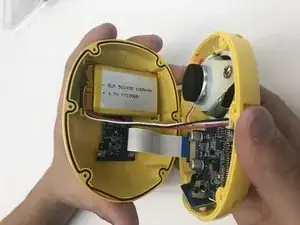

  4. OKvKBuAB21rpjX2N
    OKvKBuAB21rpjX2N
    FUSWSoQK2OS1nUau

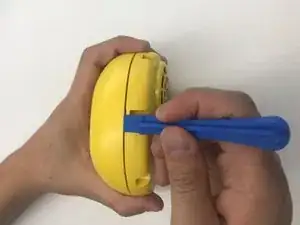

    • Use the plastic opening tool to open the inside of the duck.

    • Be very careful when splitting the two halves apart. There are wires connecting to both sides. So open it very slowly.

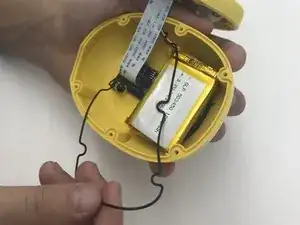

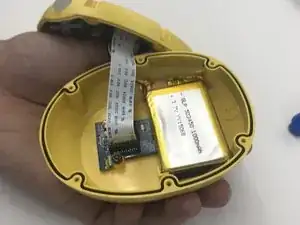

  5. NTxYNfho5ccXyjOx
    NTxYNfho5ccXyjOx
    Qk6jVCdPLDrY64sY

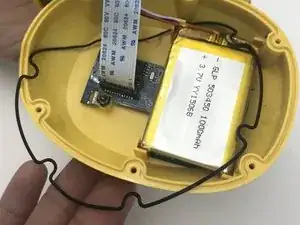

    • Remove the rubber gasket

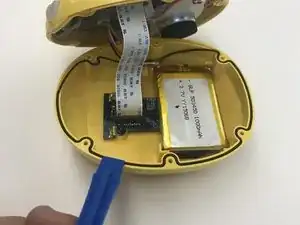

  6. QoHnqRqqa1vjlSGM

    • Insert your new rubber gasket in and use the plastic opening tool to push the rubber gasket into it's slot

Conclusione

To reassemble your device, follow these instructions in reverse order.
