Epomaker SK64S Keyboard Switches Replacement

Scritto Da: Muhammad Talha
  • Commenti: 0
Epomaker SK64S Keyboard Switches Replacement

Difficoltà

Easy

Passi

8

Tempo Necessario

1 - 2 ore

Introduzione

Use this guide for replacing faulty key switches on an Epomaker SK64S Keyboard.

If a certain character will not type while using the keyboard it might be a faulty switch or dirt has piled up. Replacing the switch and cleaning the keyboard will get the keyboard working.

No special skills are required.

Use replacement switches that are compatible with the board. In this case any Gateron optical switch will work.

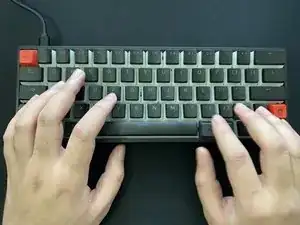

  1. SeoDJ1xaTKRmncgI
    SeoDJ1xaTKRmncgI
    SaAeYq36mBTMnCGF
    EtrnrPoYbv6PlSZ4

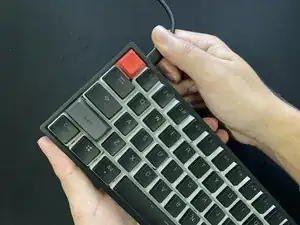

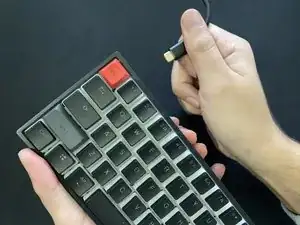

    • Do not disassemble keyboard if it is connected to a power source.

    • Unplug the power cable.

  2. XI2AY4PPdZgHVH4U
    XI2AY4PPdZgHVH4U
    jSyD4LWkOXcWr11e
    611QfmCZ4HGmMkNl

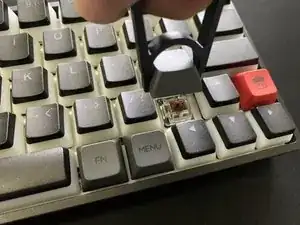

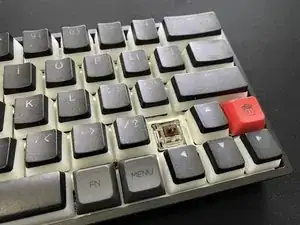

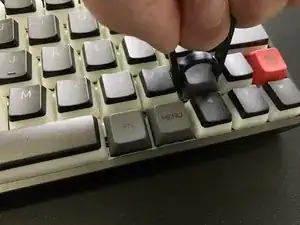

    • Align the keycap puller with the keycap.

    • Pull the keycap straight out.

    • Remove all of the keys.

  3. 2o36TWOi6xSmJiXu
    2o36TWOi6xSmJiXu
    jw3yWvPZMU6njmWH
    kxbToDgJmvWQUiOo

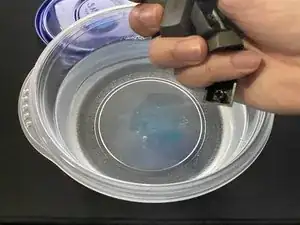

    • Fill the plastic container with water.

    • Add two drops of dish soap.

    • Put in the keycaps.

    • Let the keycaps soak for 30 minutes.

  4. m1htLJVJSTo133iu
    m1htLJVJSTo133iu
    ZTIRrVIyWI4uQZYa
    Zjm4rKCXrMncTkkA

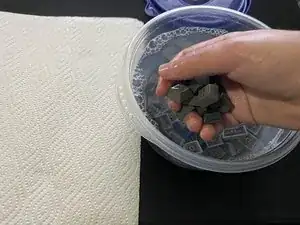

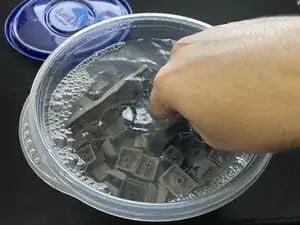

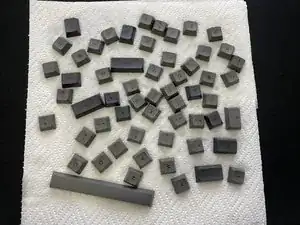

    • Take the keycaps out.

    • Place them on a paper towel.

    • Let the keycaps dry out.

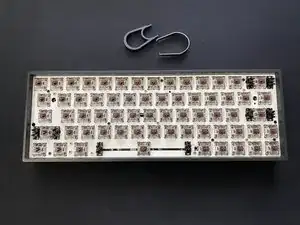

  5. lodQWC33JCgpBTaH
    lodQWC33JCgpBTaH
    maLmVpYnkZh3Ybo6
    AfsyenmSIgCCnK3L

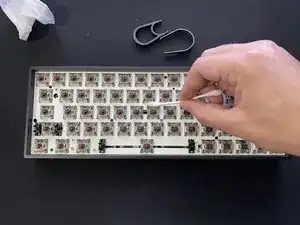

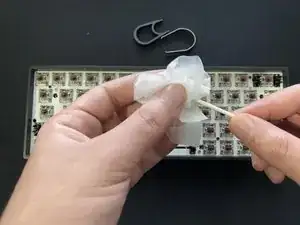

    • Use an alcohol wipe to soak the cotton swab.

    • Clean the board by running the cotton swab along the board.

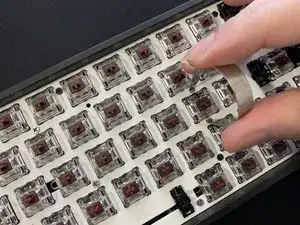

  6. i1EiQQIcNFv6bn3o
    i1EiQQIcNFv6bn3o
    YN2j5GKVVViShakY
    DVQ635Pt56CMPYWO

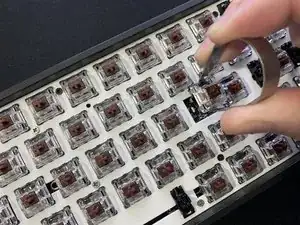

    • Align the switch puller with the faulty switch.

    • Pull the switch straight out.

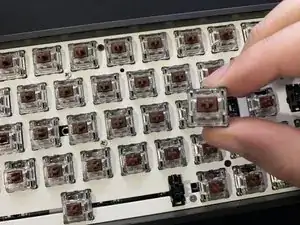

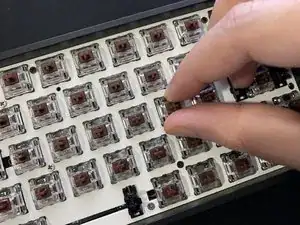

  7. oTQFoC5a26Lb5ols
    oTQFoC5a26Lb5ols
    tP4sOEqOhKjrTfRl
    2JUAhEKE1gCf4DMi

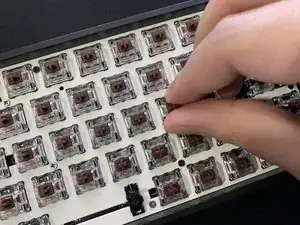

    • Align the new key switch.

    • Push the key switch straight down.

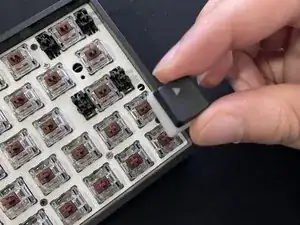

  8. GD5ZC1uYdKFCsgHP
    GD5ZC1uYdKFCsgHP
    alWv43BGeKSSgQvR
    lncJtQrUfttUs4ty

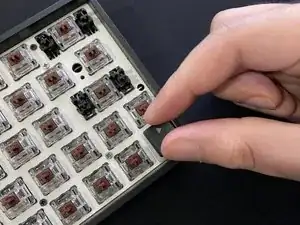

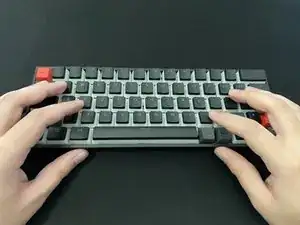

    • Align the keycap.

    • Push the keycap straight down.

    • Replace all the keycaps.

Conclusione

Type away!
