Frequency Amplifier Marshall Kilburn Battery Replacement

Scritto Da: Edith-Marie Roper
  • Commenti: 4
Frequency Amplifier Marshall Kilburn Battery Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

5 - 10 minuti

Introduzione

This is a guide for replacing the battery for the Marshall Kilburn Portable Bluetooth Speaker. If the internal battery is broken or worn out, you can replace it with a new one.

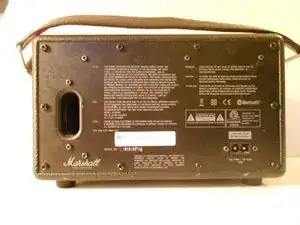

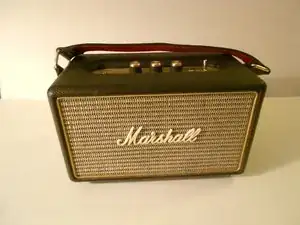

  1. OJRSZ5b1wUjGKZlO
    OJRSZ5b1wUjGKZlO
    HgmNsTqGFIRlXPfU
    TmOXXVK3QvUQE1wJ

    • Lay the amp on its side. You should see a small door kept closed with two screws. Turn the amp so the small door faces you.

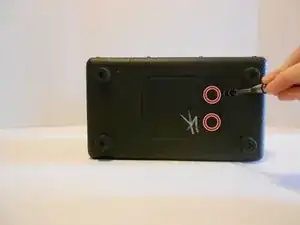

  2. MltLvOl3xDJElIfi

    • Using a TR10 Torx Security Screwdriver, remove the two screws from the door.

    • Remove the door.

    T8 screwdriver head

    Edith-Marie Roper -

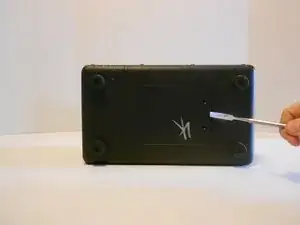

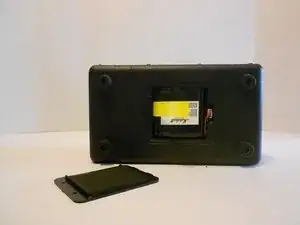

  3. jlS1ZQIcFNHcesvV
    jlS1ZQIcFNHcesvV
    Sl5aqo5cDqak2gVB
    CHY1n1IhmCxCwEbG

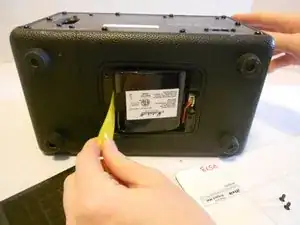

    • Pull the yellow tab to remove the battery from the amp.

    need to add instructions for prying the cover off with a spudger

    Edith-Marie Roper -

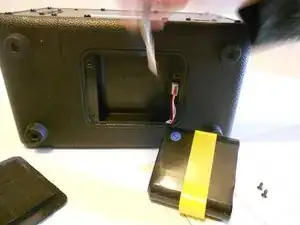

  4. RIQXZom4nYKREyAy
    RIQXZom4nYKREyAy
    jNZOBjpYKIKtPX6a

    • Carefully disconnect the battery cord from its socket. Carefully pinch the ends of the rectangular battery cord connector that is connected to the machine and gently pull the rectangular portion away from the machine so that it disconnects.

    how do you remove the cord from its socket?

    Edith-Marie Roper -

    Where exactly do you find a battery for this product?

    alec hinch -

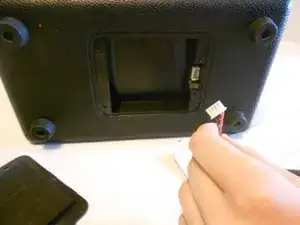

  5. LBKonLXDmviCS6Df
    LBKonLXDmviCS6Df
    2FfeH2SEeJBHMSOt

    • To reassemble, plug in the new battery cord, and insert the battery pack; have the yellow tab repositioned as in step 3.

Conclusione

To reassemble your device, follow these instructions in reverse order.
