Frigidaire FFPE45B2QM Broken Thermostat Replacement

Scritto Da: Peterluchini
  • Commenti: 3
Frigidaire FFPE45B2QM Broken Thermostat Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

Nessuna stima

Introduzione

Strumenti

  1. VnXZTyHk6jeX5VFw

    • Make sure you unplug refrigerator before beginning work on refrigerator.

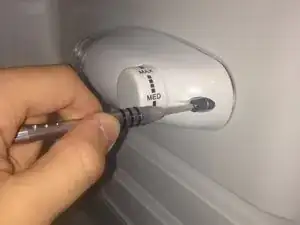

  2. oAintTFXIJm3b4TS

    • Remove the 28 mm screw holding the thermostat to the refrigerator using the JIS #1 screwdriver

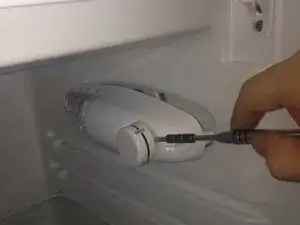

  3. JsKjmTNtlQKtRFLU

    • Carefully remove the thermostat knob.

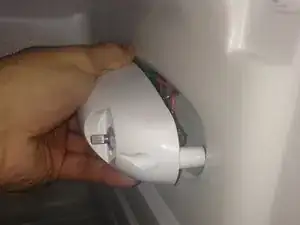

  4. mwVWOXZPGJZYDUZ1

    • Carefully slide off the thermostat towards you.

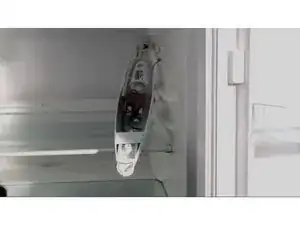

  5. FTBPD2RmOoDLETmF

    • Once the thermostat is removed, take a picture of the cords (still connected) to help with reassembly. Then proceed to disconnect the wires.

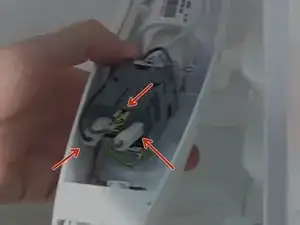

  6. fnBWvUKk4AgSekZm

    • Remove the three cords on the front side of the thermostat by simply pulling the plastic connector off for two connections and doing the same for the metal connection. Do the same to the back side, disconnecting another plastic connector and then remove the thermostat.

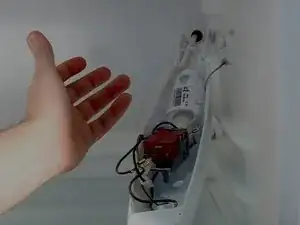

  7. lkvbbXCNWHjlPQUI

    • Replace the old thermostat and reassemble the new thermostat using the picture that you took before to properly connect the wires.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Peterluchini

Membro da: 05/11/15

556 Reputazione

3 commenti

Peter, I have the same fridge and it never dropped any colder than 43F. Is this the same issue you were having? Did changing the thermostat fix it?

Thanks!

Krunal Patel -

شما یا درجه ترموستات یخچال را بر روی بیشترین مقدار قرار دهید یا دو سیم ترموستات را به یکدیگر وصل کنید که همواره کمپرسور یخچال روشن بماند و خاموش نشود

بعد از چند ساعت برسی کنید ایا شرمای یخچال مناسب است؟ اگر مناسب بود یعنی ترموستات یخچال ایراد دارد و اگر باز هم سرد نبود مشکل از کم بودن گلز مبرد است و باید گاز سرر کننده تزریق شود

David -

You either set the refrigerator thermostat to the highest value or connect the two thermostat wires to each other so that the refrigerator compressor always stays on and does not turn off.

After a few hours, check if the refrigerator is suitable. If it was suitable, it means that the refrigerator thermostat has a problem, and if it is still not cold, the problem is due to the lack of coolant, and cooling gas should be injected.

David -
