FujiFilm FinePix A340 LCD Screen Replacement

Scritto Da: Cody
  • Commenti: 0
FujiFilm FinePix A340 LCD Screen Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

10 - 15 minuti

Introduzione

Remove and replace LCD screen.

  1. Pkt3FmqJAJ4aQLDB

    • To prevent the danger of electric shock, remove the batteries before continuing to the next steps.

    • Slide the battery cover to the side to release the batteries.

  2. vmRqxIHXMXfnccM1
    vmRqxIHXMXfnccM1
    Fgu3NMD2PrESRQSM
    6yWExUFP3GMeI43j

    • Remove five screws from the camera casing using a tri-point Y0 screwdriver.

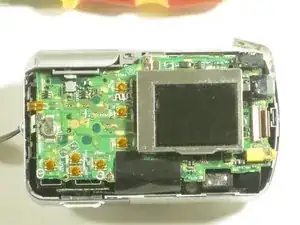

  3. fAhbFy25dmJLRN2h
    fAhbFy25dmJLRN2h
    wFY3hhf6RXgwDrsl

    • Grab the case with your hands and slowly pull back the outer casing.

  4. 4ajevGoBgvNcgrMu

    • Locate the LCD screen and anchoring screw.

    • Remove screw.

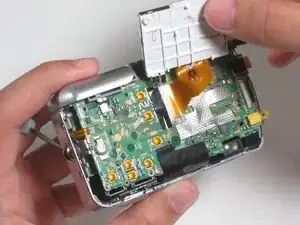

  5. eQXTqDBGiQWjfHOq

    • Carefully pull the LCD screen away from the board it is connected to.

  6. HwIDHLHKLbqNmSMZ

    • Push both blue switches away from the holding device to unleach lcd ribbon.

    • Be careful when removing ribbon. If you damage it, you will need to replace it as well.

  7. bMLVTGfgqxoHSQnS

    • Carefully detach the ribbon from where it was connected by the blue pins.

  8. E1BaJJrZ3cESyaiM

    • Now that everything has been disconnected from the board, remove LCD screen.

Conclusione

To reassemble your device, follow these instructions in reverse order.
