Fujitsu LifeBook N3510 Hard Drive Replacement

Scritto Da: Neil Daniels
  • Commenti: 0
Fujitsu LifeBook N3510 Hard Drive Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

5 - 10 minuti

Introduzione

You can install a new hard drive in your computer.

  1. XvRkNUtKGS2tGYle

    • Locate the two clips on the bottom of the computer that support the battery.

  2. aKlsNFFaynXfcbkJ

    • Using your fingers, push the clips inward and then upward.

    • Lift the battery out of the computer.

  3. E33VWkT1VLcbN35R

    • Remove the two screws securing the hard drive access cover.

    • Screws not shown in picture.

  4. yM5qiPd3k2AQUXbw
    yM5qiPd3k2AQUXbw
    Jdi1dAJDA12VQiao

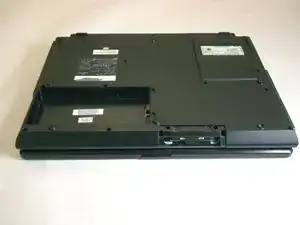

    • Remove hard drive access cover.

  5. uZBP1kBTIHvrSvR3
    uZBP1kBTIHvrSvR3
    EoHCjySkTQx1HrKt

    • Grasp hard drive sleeve tab and pull out.

  6. BEUtFsuSOPJItmGu
    BEUtFsuSOPJItmGu
    cfaVvemMLPYQLLME
    HxK4pYpGgwtjFRiS

    • Remove hard drive from plastic sleeve.

Conclusione

To reassemble your device, follow these instructions in reverse order.
