Fujitsu M2011 Keyboard Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

4 minuti

Introduzione

In order to remove the keyboard, you will need a Phillips screwdriver. This repair may be required if your keyboard is damaged or unresponsive.

  1. sYmwePjVxK6DMMOw
    sYmwePjVxK6DMMOw
    fKFFunYWjPqU2mFf

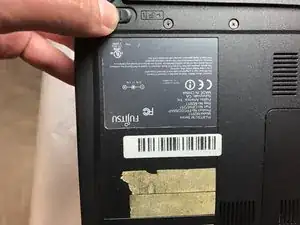

    • Slide switch #1 (shown) to the left.

  2. DRaVVgDVam3MTTfu
    DRaVVgDVam3MTTfu
    ZhQrmJNEM2jJsQ62

    • Slide switch #2 (shown) to the right and hold.

  3. oxyyKDB2OdXQSW3S

    • Pull the battery straight back out.

  4. 2xKqi1y6hU4QAF15

    • Remove the three 4.6 mm PH0 screws in battery chamber.

  5. jeOVUYU2GuTTGoyQ

    • Lift the black plate with the power button gently.

  6. 5KGfDgXIkFRt1KNf

    • Remove the keyboard.

    • There will be tape on the wired connection to the motherboard.

Conclusione

To reassemble your device, follow these instructions in reverse order.
